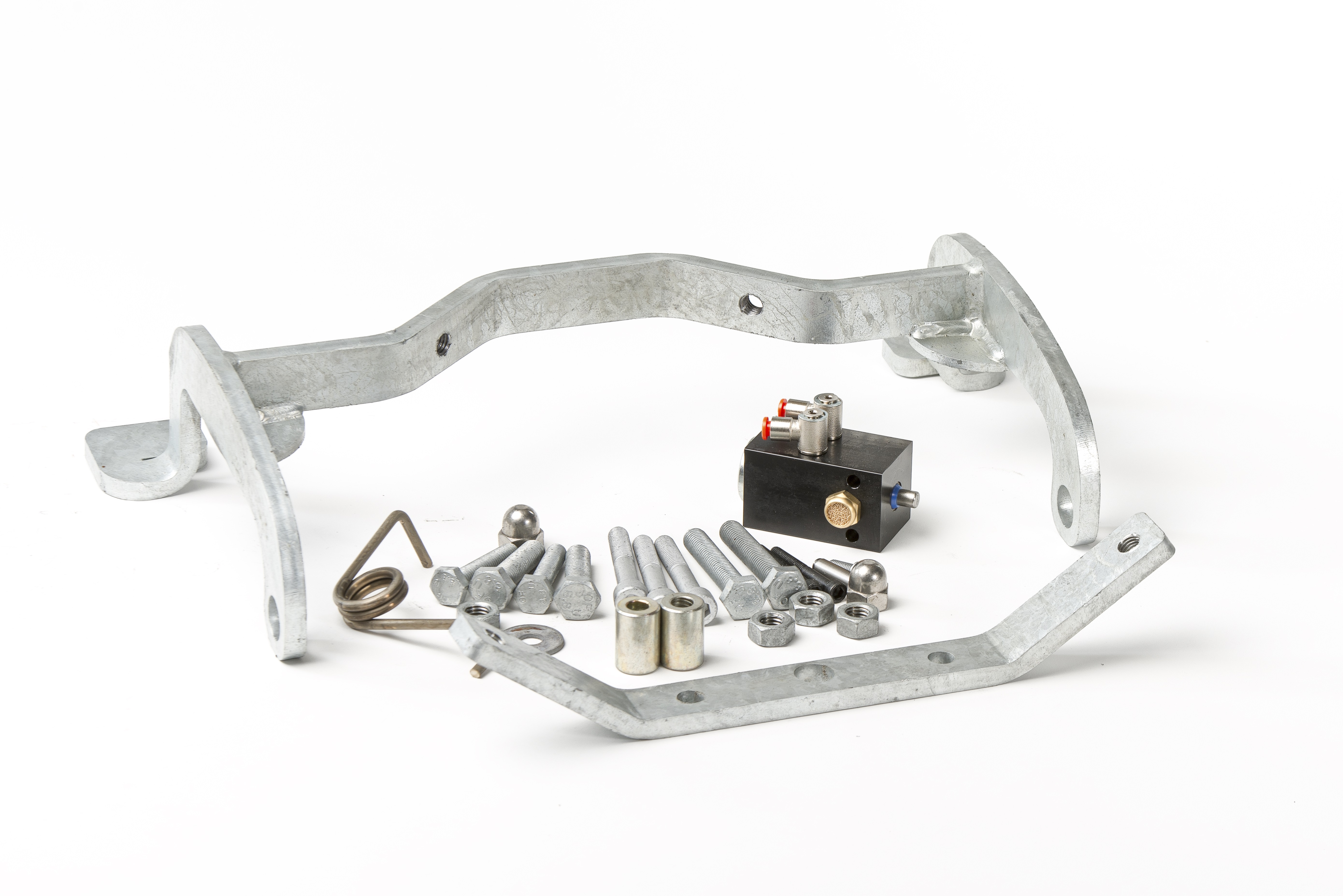

Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 132 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT LL 172 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT LL 194 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT LL 218 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SDC 129 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SDC 149 and SUT 152 models.
A hydraulic tipping angle limiter, for example to be used in the trailer. Can be assembled with separate return oil line or as a single line connection.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 194 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 218 models.
Includes the needed knock off levers, the hydraulic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 172 models.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 132 models.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT LL 218 models. In combination with this a 20CR-rotary fitting is used. Rotary fitting is not included in limiter package.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing and this gives you a compact and efficient knock-off system. Fits the SUT LL 172 and 194 cylinders. In combination with this a 20CR-rotary fitting is used (NOTE! The 172-sized cylinders need a longer rotary fitting). Rotary fitting is not included in limiter package.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SUT 218 models. In combination with this a 20CR-rotary fitting is used. Rotary fitting is not included in limiter package.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SDC 129 models.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing 320209745 and this gives you a compact and efficient knock-off system. Fits the SDC 149 and SUT 152 models.
Includes the needed knock off levers, the pneumatic knock-off valve and the mounting parts for the package. The limiter and the levers are all installed on the cradle + the welded bearing and this gives you a compact and efficient knock-off system. Fits the SUT 172 and 194-sized cylinders. In combination with this a 20CR-rotary fitting is used (NOTE! The 172-sized cylinders need a longer rotary fitting). Rotary fitting is not included in limiter package.

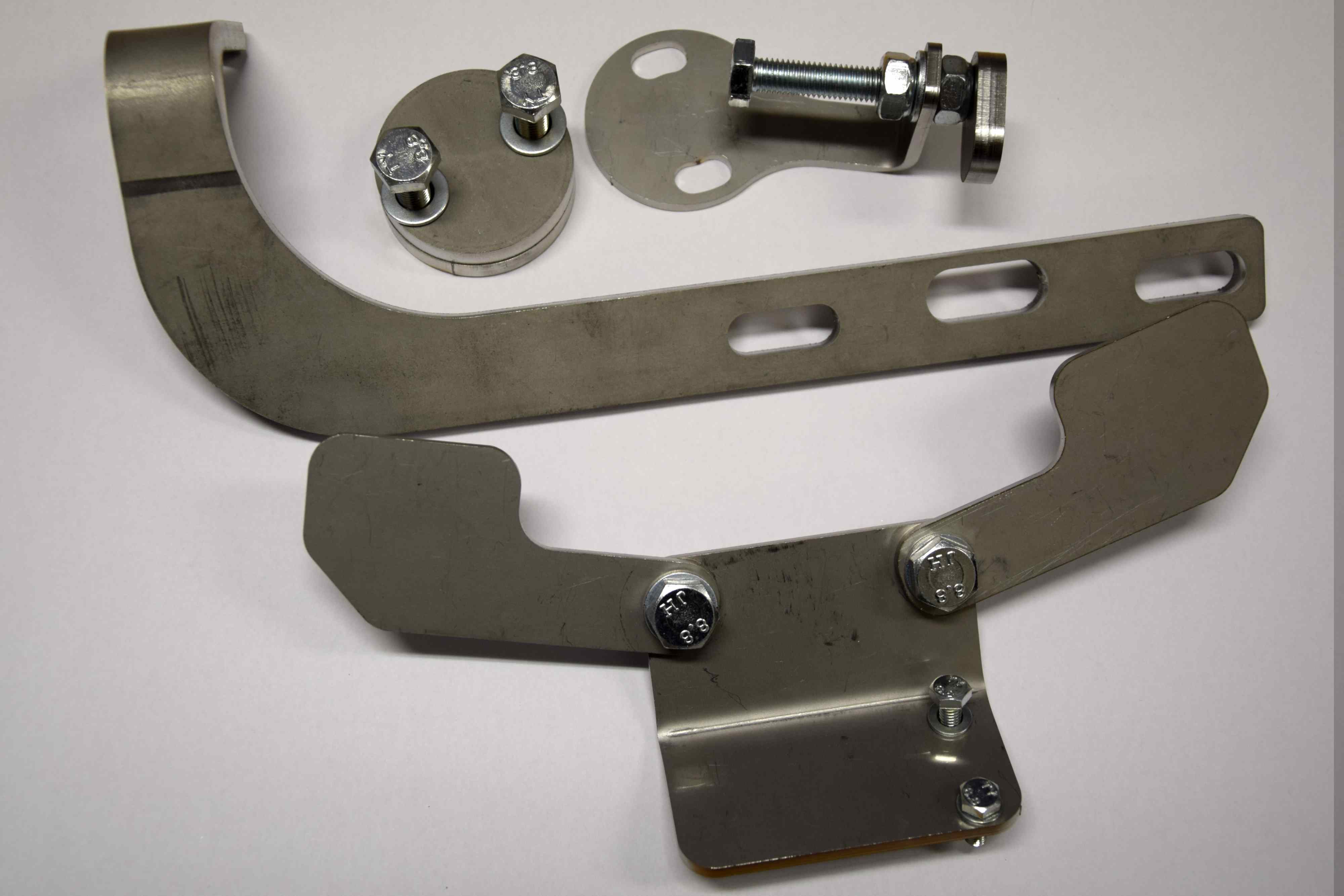

A clamp model 3 way knock-off lever for TT 132 models. Usable when the cradle is mounted lengthwise or transverse with welded frame bearings 320209745 together with knock-off valve support 360207012 that holds the pneumatic or hydraulic knock-off valve on place. When cradle is mounted transverse with frame, knock-off valve support 320209222 is needed. On this can be mounted hydraulic or pneumatic knock-off valve. The 3-way knock-off lever is clamped around the outer tube of the cylinder and tightened with a screw. The final setup of the desired tipping angle adjusts with screws.
A clamp model 3 way knock-off lever for TT 218 models. Usable when the cradle is mounted lengthwise or transverse with welded frame bearings 320209745 together with knock-off valve support 360207012 that holds the pneumatic or hydraulic knock-off valve on place. When cradle is mounted transverse with frame, knock-off valve support 320209222 is needed. On this can be mounted hydraulic or pneumatic knock-off valve. The 3-way knock-off lever is clamped around the outer tube of the cylinder and tightened with a screw. The final setup of the desired tipping angle adjusts with screws.
The knock-off lever fits to all RT, RTF models. Limiting the tipping angle prolongs the lifetime of the cylinder and prevents accident happening. This knock-off lever is designed to be used in the Nummi RT model together with either Nummi´s hydraulic, pneumatic or electric limiter valve.
A clamp model 3 way knock-off lever for TT 194 models. Usable when the cradle is mounted lengthwise or transverse with welded frame bearings 320209745 together with knock-off valve support 360207012 that holds the pneumatic or hydraulic knock-off valve on place. When cradle is mounted transverse with frame, knock-off valve support 320209222 is needed. On this can be mounted hydraulic or pneumatic knock-off valve. The 3-way knock-off lever is clamped around the outer tube of the cylinder and tightened with a screw. The final setup of the desired tipping angle adjusts with screws.
A clamp model 3 way knock-off lever for TT 172 models. Usable when the cradle is mounted lengthwise or transverse with welded frame bearings 320209745 together with knock-off valve support 360207012 that holds the pneumatic or hydraulic knock-off valve on place. When cradle is mounted transverse with frame, knock-off valve support 320209222 is needed. On this can be mounted hydraulic or pneumatic knock-off valve. The 3-way knock-off lever is clamped around the outer tube of the cylinder and tightened with a screw. The final setup of the desired tipping angle adjusts with screws.
A clamp model 3 way knock-off lever for TT 152 models. Usable when the cradle is mounted lengthwise or transverse with welded frame bearings 320209745 together with knock-off valve support 360207012 that holds the pneumatic or hydraulic knock-off valve on place. When cradle is mounted transverse with frame, knock-off valve support 320209222 is needed. On this can be mounted hydraulic or pneumatic knock-off valve. The 3-way knock-off lever is clamped around the outer tube of the cylinder and tightened with a screw. The final setup of the desired tipping angle adjusts with screws.
Knock off lever and valve suport for RT, RTF cylinders. Suitable for RT 132 and 152 models.
Rear tipping knock-off lever set for TT models. Usable when the cradle is mounted lengthwise with welded frame bearings 320209745 or bolted frame bearings 320325030. Suitable for hydraulic or pneumatic limiter valve.
3-way tipping knock-off lever set for TT models. Usable when the cradle is mounted lengthwise with welded frame bearings 320209745 or bolted frame bearings 320325030. Suitable for pneumatic limiter valve.
A pneumatic valve for controlling functions steered by a pneumatic spindle, for example usable as a tipping angle limiter. No mounting kit included.
Pneumatic tipping angle limiter valve for JTD, DF cylinders. Direct fit for the frame bearings. Includes mounting parts.
A pneumatic knock off valve for tipping angle limiter. The kit includes mounting parts for the valve.
Knock-off lever kit for JTD, DF cylinders. For pneumatic or hydraulic tipping angle limiter valves.
Knock off kit for RT, RTF 132 and RTF 152 models. Easy to install, includes all needed parts.
Pneumatic knock-off lever kit for JTC cylinders. Kit includes pneumatic limiter valve, knock-off lever and mounting parts.
Knock-off valve support for transverse installation of TT lifting unit. Can be used with frames 320408029. On support you can mount hydraulic knock-off valve 360507832 or pneumatic knock-off valve 360508437
Knock-off valve support for transverse installation of TT lifting unit. Can be used with frame bearing 320209745. On support you can mount hydraulic knock-off valve 360507832 or pneumatic knock-off valve 360508437
Mounting kit proximaty switch for SUT cylinders. Use switch and cables 360511033 whit this kit.
Proximity switch for knock off use with 5m cable. NC= Normally closed. Adjustable sensing range 5mm +-1mm. The maximum power consumption of the actuator can be 200mA. Conenction: Brown: battery+, Blue: battery- and White: actuator.
Mounting kit proximaty switch for JTC, JTD, DF cylinders. To be used with switch and cables 360511033.
Mounting kit proximaty switch for RT, RTF cylinders. Use switch and cables 360511033 whit this kit.
