Attachment parts

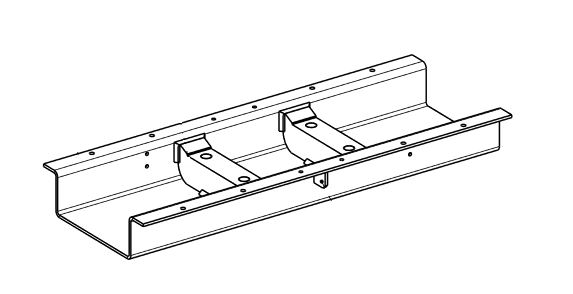

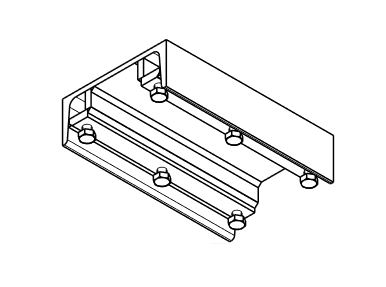

Frame bearing, used with mounting frame 320208686

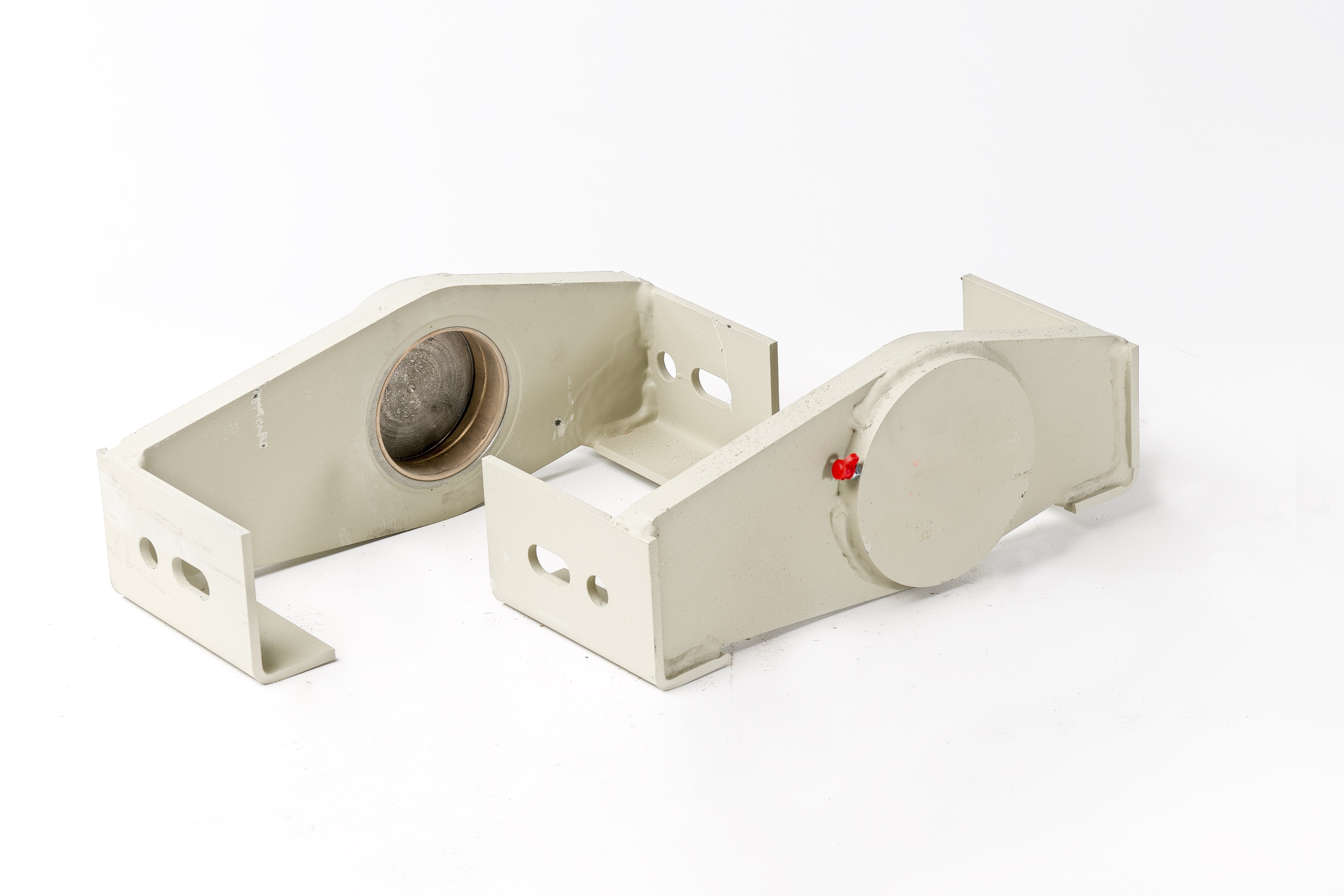

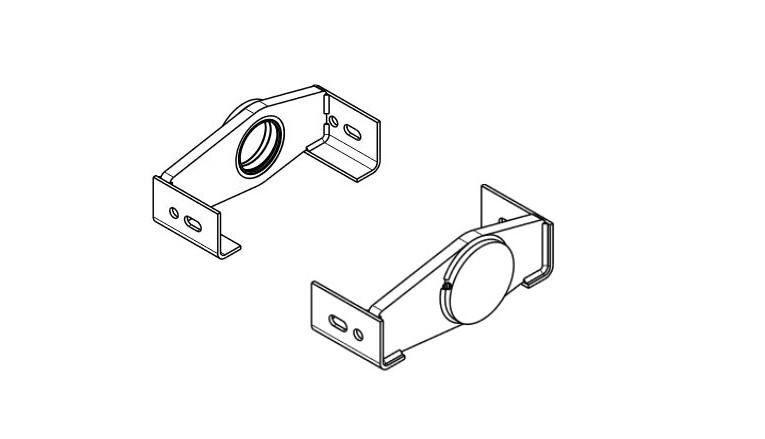

Frame beam pair for RT models 172, 192 (32ton). The length of the frame beam is 435mm.

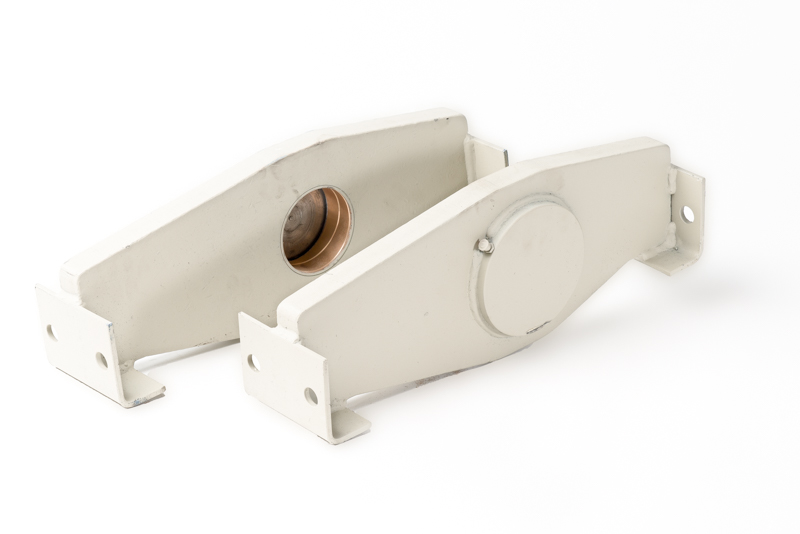

Frame beam pair for RT model 219 (32ton). The length of the frame beam is 484mm.

Frame beam pair for RT, RTF models 50ton. The length of the frame beam is 355mm.

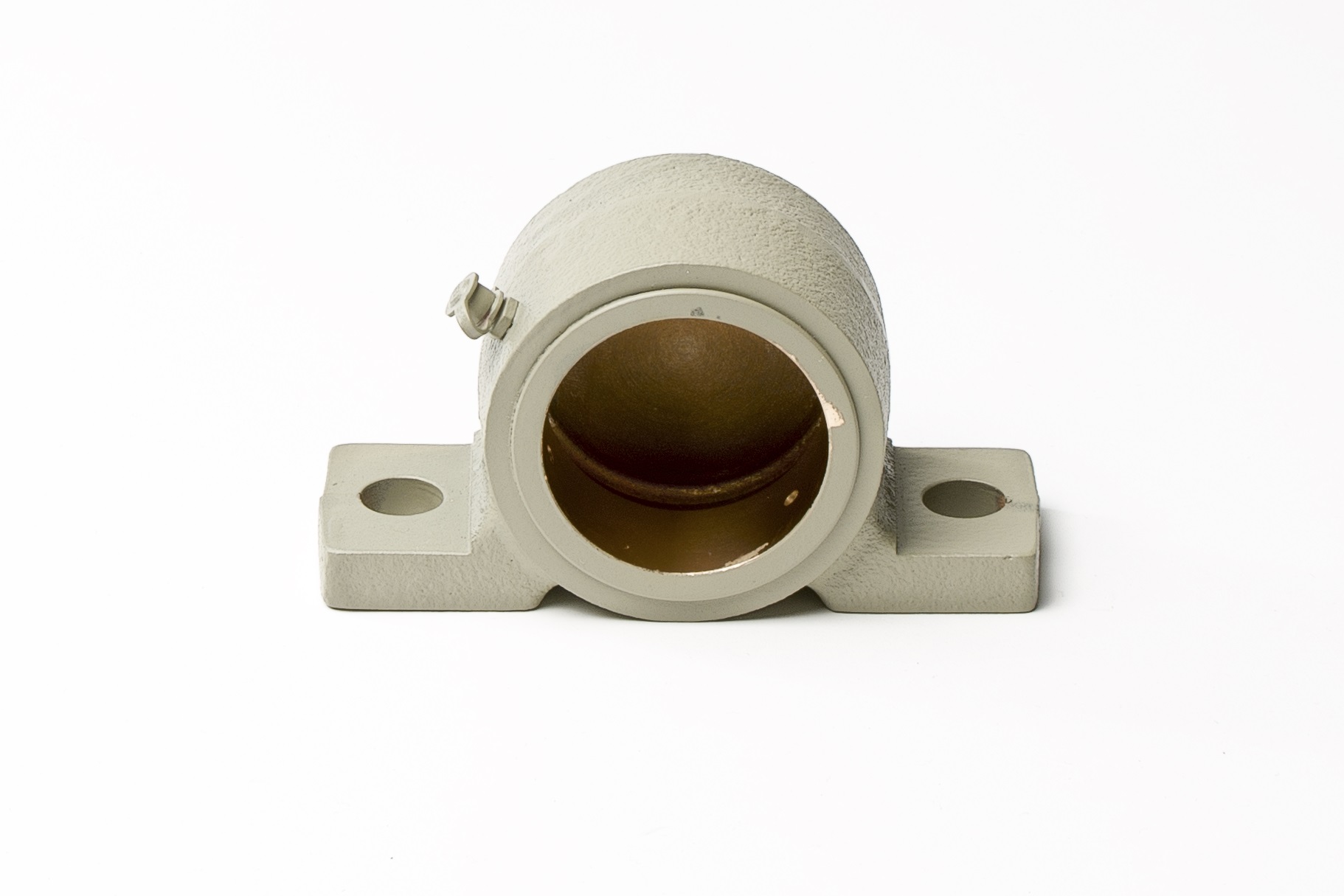

Bolt attachment frame bearings for TT models that are assembled longitudinally on the truck. Frame bearings are bolted to the cross memebers that are welded on the desired height in the subframe.

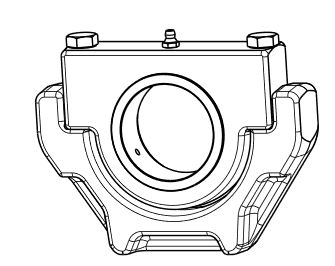

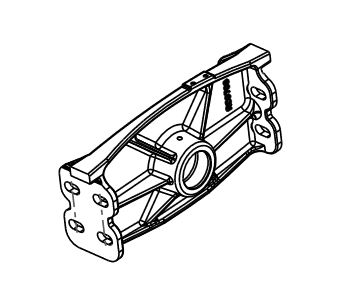

Bearing beam for JTD, DF series cylinders. Max load 25ton / beam. Steel casting. Includes bronze bearing. Mounted between frame crossmembers. Length 386mm. Bearing ID 65mm.

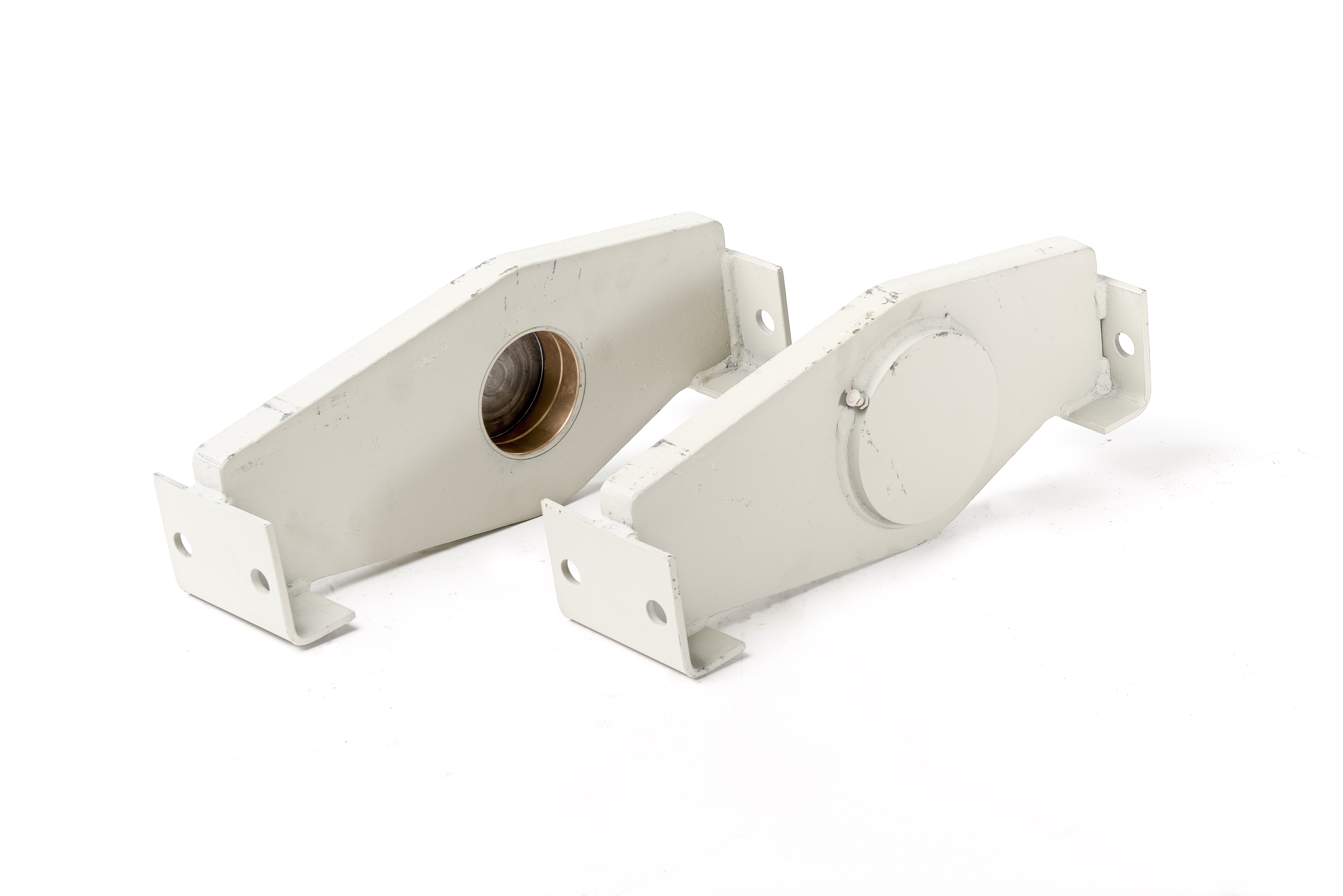

Frame beam pair for RT, RTF models 115-152 (32ton). The length of the frame beam is 355mm.

Bearing beam for DF series cylinders. Max load 20ton / beam. Steel casting. Includes bronze bearing. Mounted between frame cross members. Length 286mm. Bearing ID 65mm. Suitable for DF 129 and 149 models.

Frame beams for TT 3-way tipping cylinder mounting. These bearings are mounted on frame cross member z-beams. As a result the cylinder cradle sits crosswise in the truck subframe. Max load 32ton / 2 frame beams. Bronze bearings included. Right side.

Frame beams for TT 3-way tipping cylinder mounting. These bearings are mounted on frame cross member z-beams. As a result the cylinder cradle sits crosswise in the truck subframe. Max load 32ton / 2 frame beams. Bronze bearings included. Left side.

The welded frame bearings are used when the cradle is to be mounted longitudinally on the truck. Frame bearings are welded to the subframe cross members. Allways use these bearings when SUT limiter package is used. The bearings define the mounting height of the cylinder. Also TT models can be assembled with welded frame bearings.

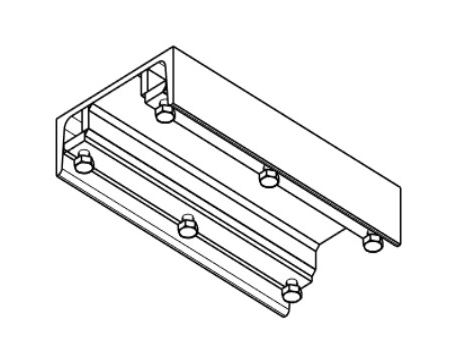

Mounting frame JTC cylinders, without frame bearings

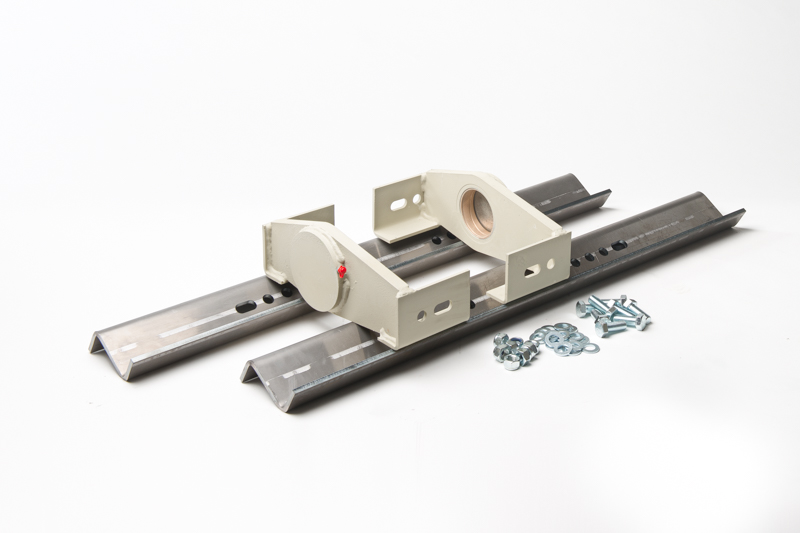

Frame for RT, RTF 50 ton models. The mounting frame consists of two z-beams together with frame beams for left and right side. The z-beams are 1000mm long and they can be shortened to fit the truck/trailer frame width.

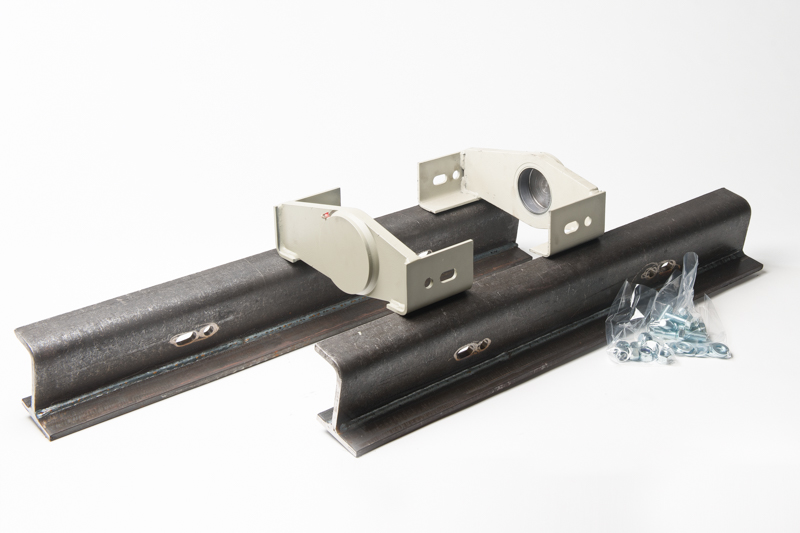

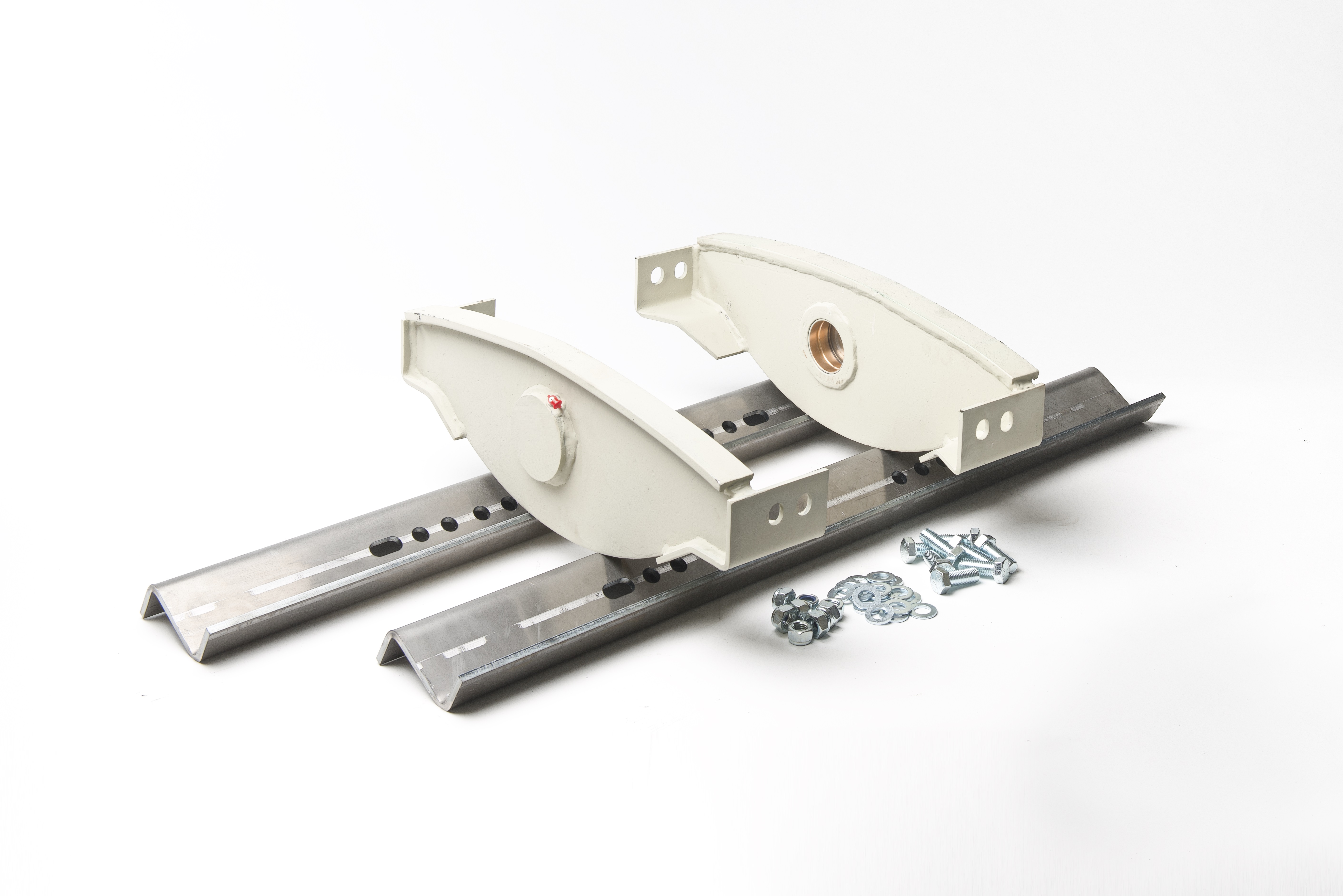

Complete frame for TT 3-way tipping cylinder mounting. These bearings are mounted on frame cross member z-beams. As a result the cylinder cradle sits crosswise in the truck subframe. Included in the frame: z-beams, frame beams 32ton right+left, mounting kit. For max 32ton TT cylinders.

Frame for RTW, RTFW 50 ton models. The mounting frame consists of two z-beams together with frame beams for left and right side. The z-beams are 1000mm long and they can be shortened to fit the truck/trailer frame width.

Mounting frame for RT, RTF models 115, 132, 152, 172 (32ton). The mounting frame consists of two z-beams together with frame beams for left and right side. The z-beams are 1000mm long and they can be shortened to fit the truck/trailer frame width. This mounting frame is not meant to be used with RT66 172-219 models. For these longer RT cylinders for the trailers we suggest to mount the cylinder using the frame beam pair 320308069 or 320308070 that are mounted directly on the cross members in the trailer frame.

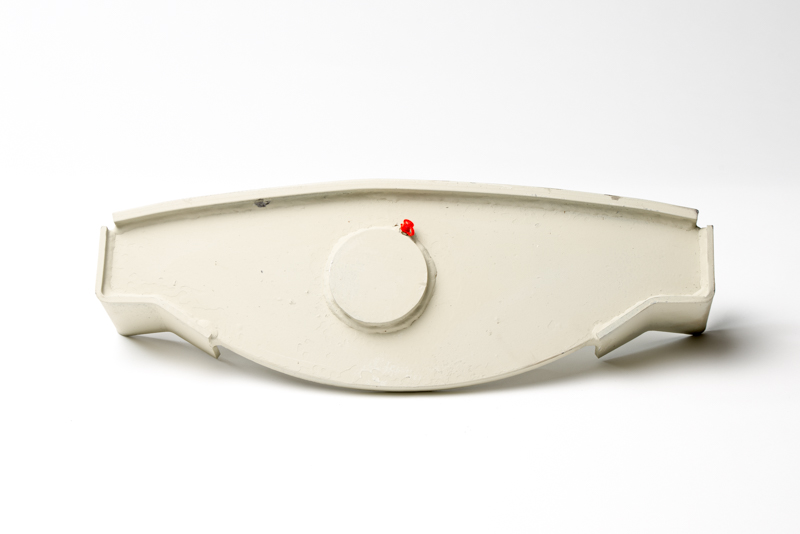

Fastening plate for RT, RTF models 132, 152, 172, 192, 219 (32ton). To be welded to the base of the body.

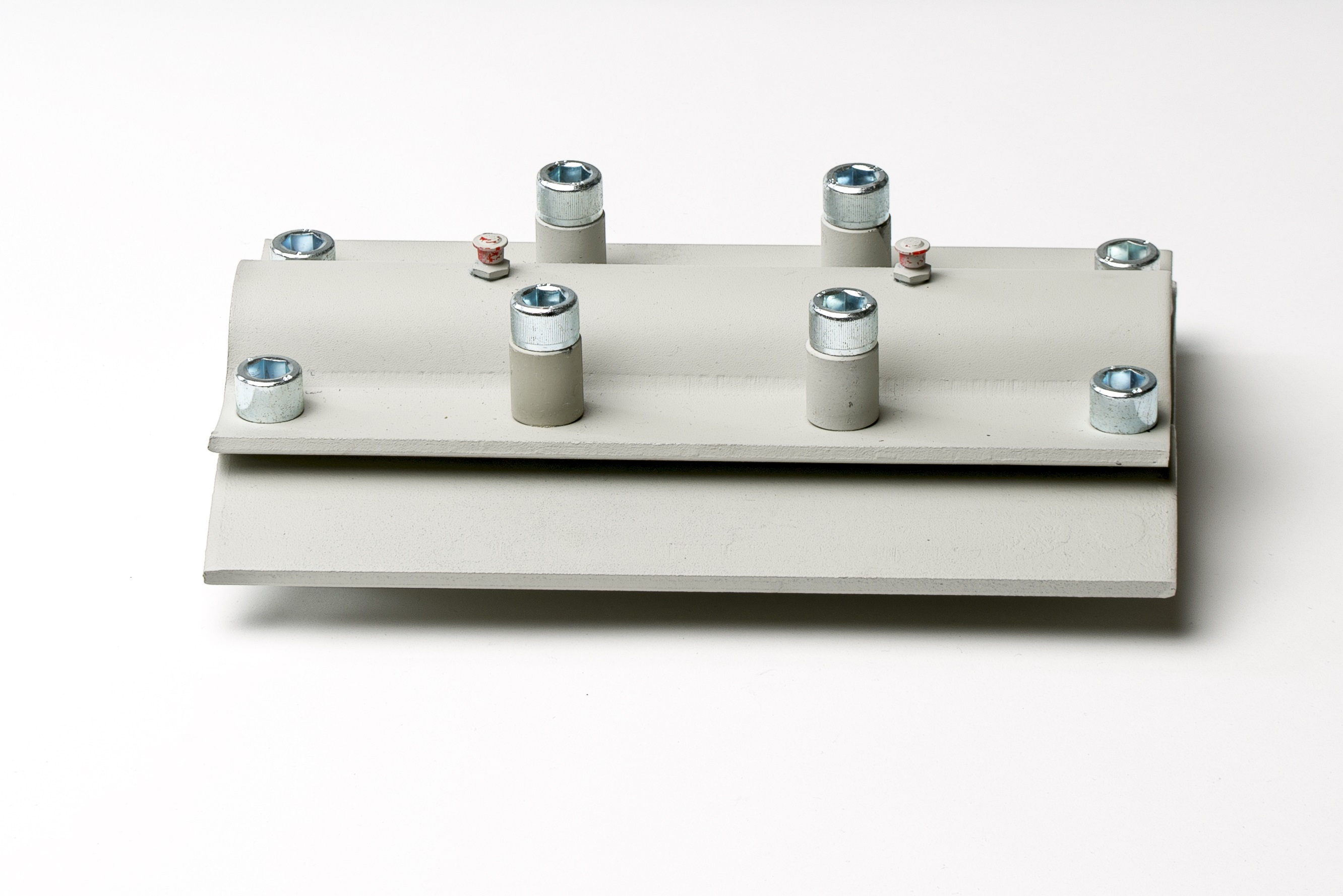

Lifting arm body bracket for the JTC and JTD cylinders. Attaches to the body with bolts. Max load 20ton / bracket. Distance from the bearing eyelet to the bottom of the bracket 145mm.

Lifting arm body bracket for the JTC and JTD cylinders. Attaches to the body with bolts. Max load 20ton / bracket. Distance from the bearing eyelet to the bottom of the bracket 250mm.

Fastening plate for RT, RTF 50 ton. To be welded to the base of the body.

Fastening plate for RTW, RTFW 50 ton. To be welded to the base of the body.

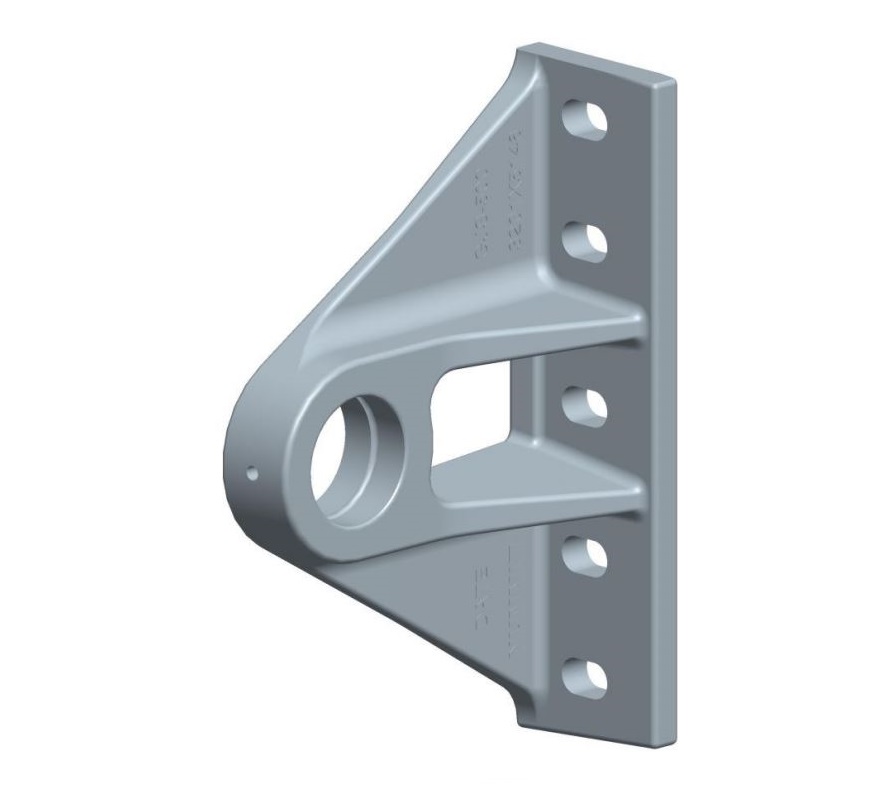

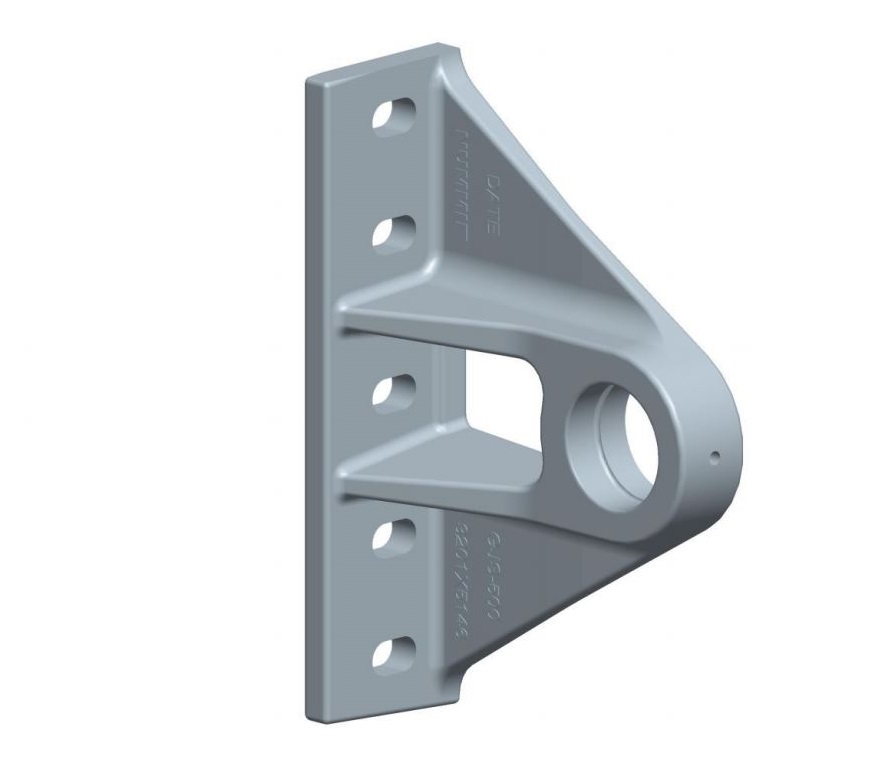

Short body bracket for DF series cylinders. Max load 25ton / bracket. Steel casting. Includes grease nipple. Mounts on the body with bolts. Distance from the bearing eyelet to the bottom of the bracket 165mm. Right side.

Body bracket for DF series cylinders. Max load 25ton / bracket. Steel casting. Includes grease nipple. Mounts on the body with bolts. Distance from the bearing eyelet to the bottom of the bracket 229mm. Left side.

Short body bracket for DF series cylinders. Max load 25ton / bracket. Steel casting. Includes grease nipple. Mounts on the body with bolts. Distance from the bearing eyelet to the bottom of the bracket 165mm. Left side.

Body bracket for DF series cylinders. Max load 25ton / bracket. Steel casting. Includes grease nipple. Mounts on the body with bolts. Distance from the bearing eyelet to the bottom of the bracket 229mm. Right side.

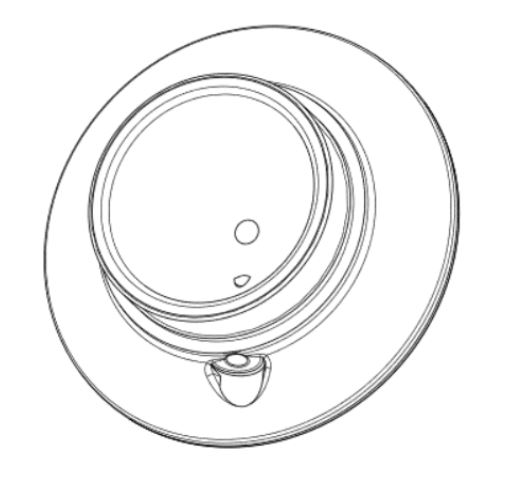

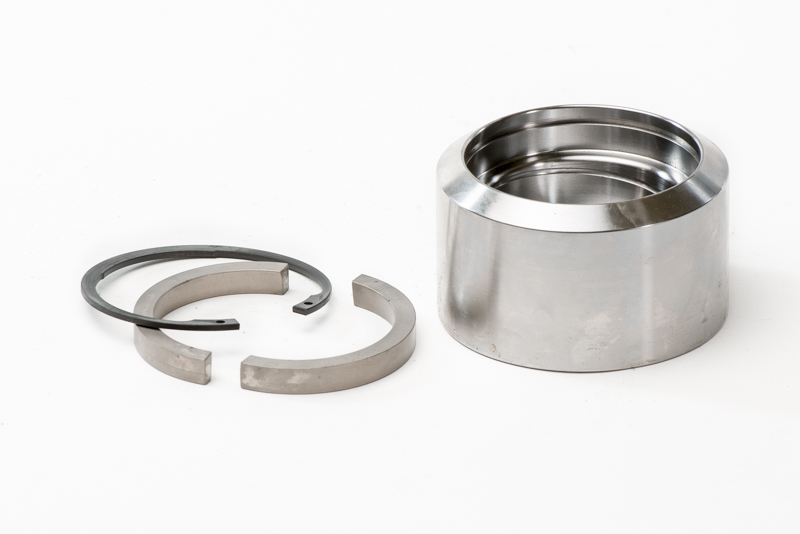

Ball cup 70 SUT,SDC M8x1 Ø106

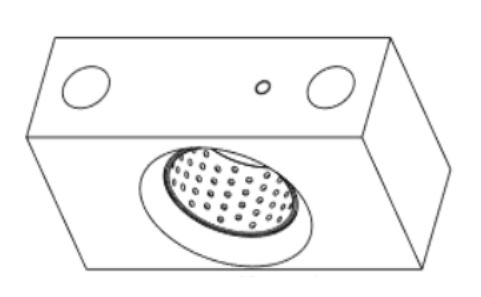

Ball cup 70 TT
