Sub-frame parts

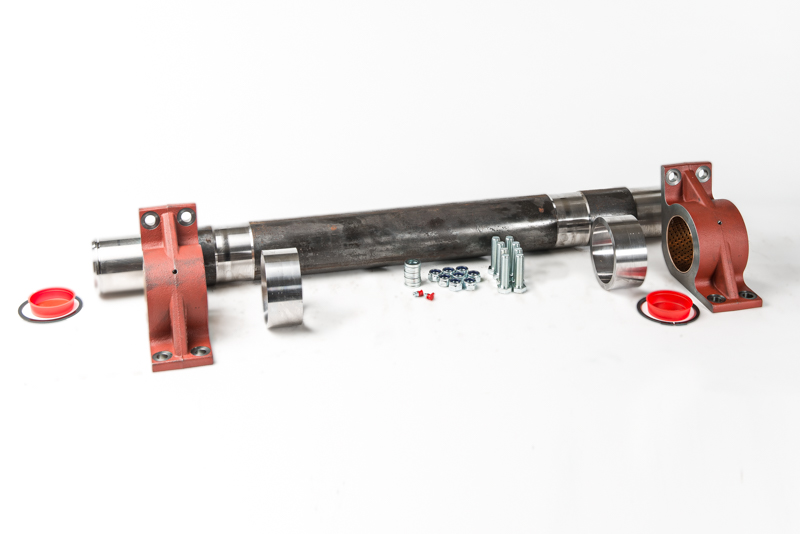

Generic rear tipping hinge for trucks. Free length between bushings 791mm. Distance between bearing centerlines (c-c) 920mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

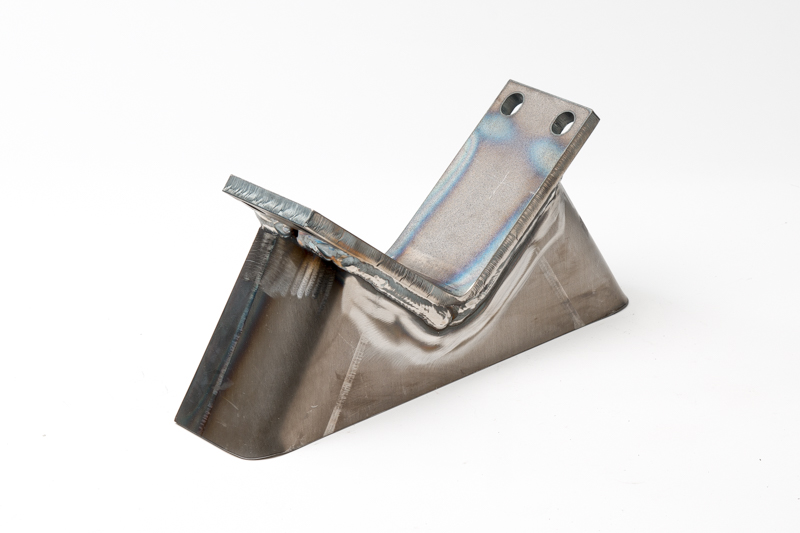

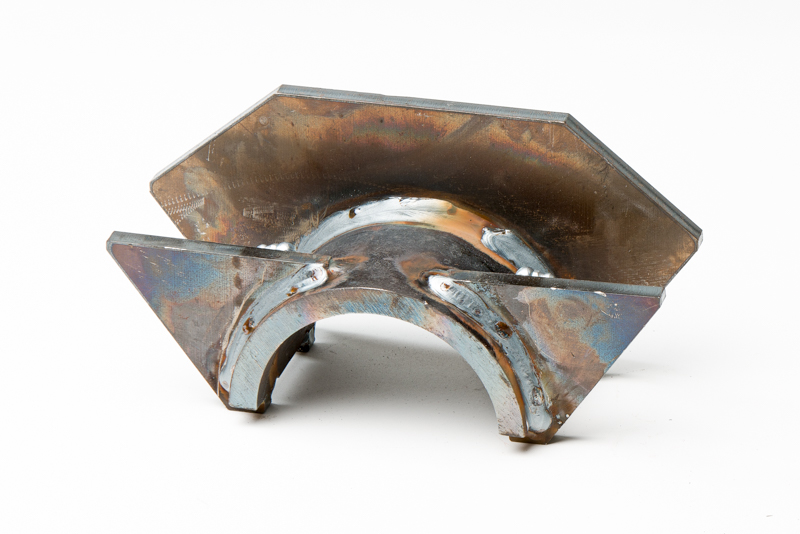

Connection bracket for the rear tipping axles. Welds on the body and bolt connection to the bearing housing of the axle. Shallow model. Need 2pcs

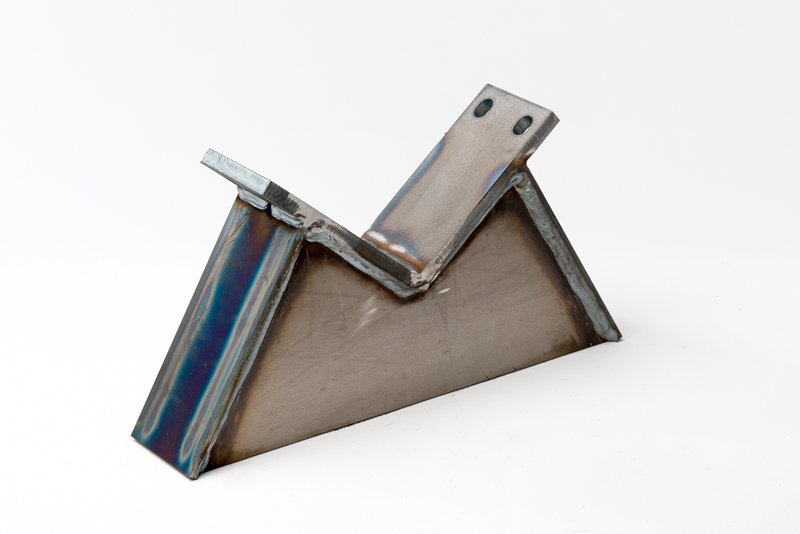

Connection bracket for the rear tipping axles. Welds on the body and bolt connection to the bearing housing of the axle. Higher model (H=+63mm). Need 2pcs

Connection bracket for the rear tipping axles. Welds on the body and bolt connection to the bearing housing of the axle. Shallow model. Need 2pcs

Rear tipping hinge for trailers. Free length between bushings 1223mm. Distance between bearing centerlines (c-c) 1350mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for trailers. Free length between bushings 1443mm. Distance between bearing centerlines (c-c) 1570mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for Volvo and Renault trucks. Free length between bushings 866mm. Distance between bearing centerlines (c-c) 995mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for trailers. Free length between bushings 1131mm. Distance between bearing centerlines (c-c) 1258mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for Mercedes-Benz and MAN trucks. Free length between bushings 776mm. Distance between bearing centerlines (c-c) 995mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for Scania and Iveco trucks. Free length between bushings 786mm. Distance between bearing centerlines (c-c) 995mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

Rear tipping hinge for Sisu trucks. Free length between bushings 816mm. Distance between bearing centerlines (c-c) 995mm. Maximum load 50ton for body length ≤ 7000mm. Maximum load 40ton for body lengths 7001-13400mm. Maximum inclination from horizontal 2°. Content of delivery: axle, bushings, locking rings, cast bearing housing with bronze bearing bushing.

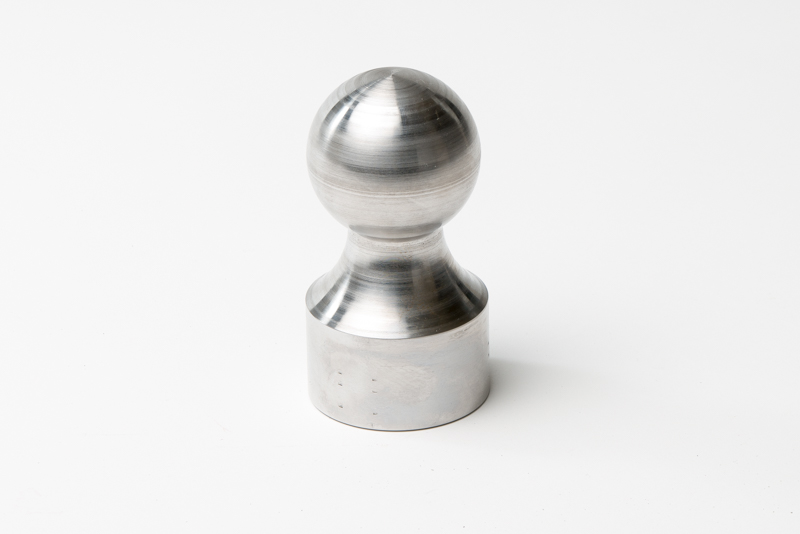

Bare ø70mm ball for 3-way tipping hinge use. Welds on the axle

Support bearing for the 3-way rear hinge. Makes tipping more stable

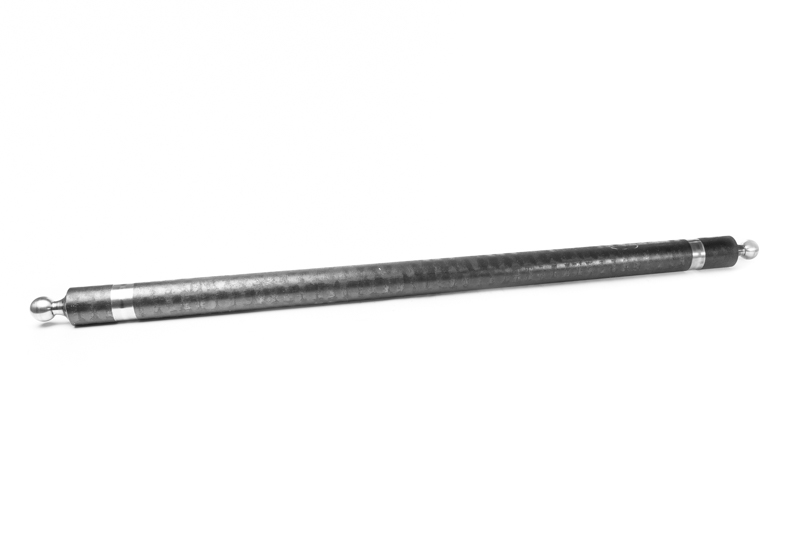

3-way tipping hinge, rear. ø70mm balls in the ends of the axle. 2200mm between the centerlines of the balls. Maximum load for rear and side tipping is 25ton. Locks to be ordered separately.

3-way tipping hinge, front. ø35mm shafts with grease nipples in the ends of the axle. 2200mm distance between the centerlines of the axles. Maximum load for rear and side tipping is 25ton. Locks to be ordered separately.

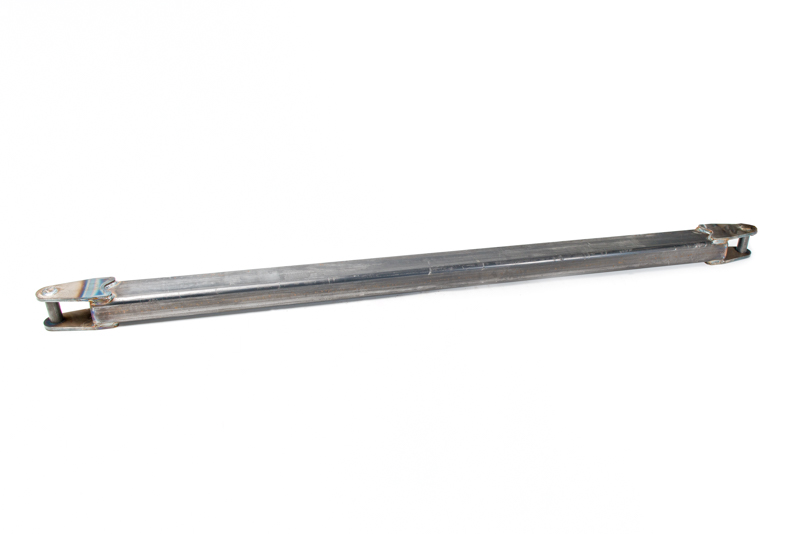

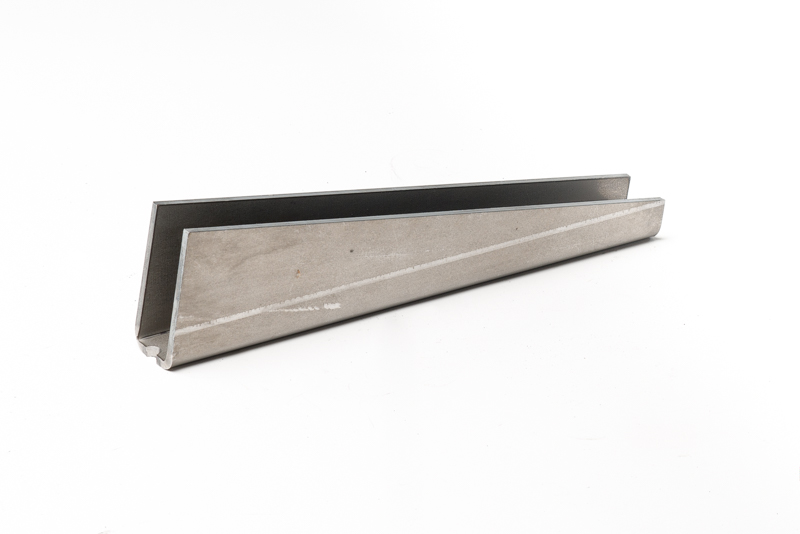

Side support beam for the 3-way tipping hinge, front 370208012. Welds on to the subframe as well as the axle. Need 2pcs.

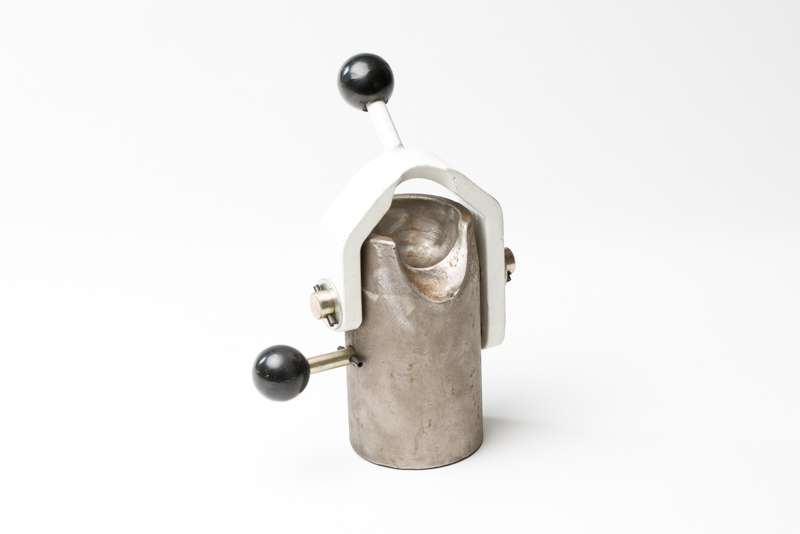

3-way tipping hinge rear lock for a ø70mm ball. Need 2pcs.

3-way tipping hinge front lock for a ø35mm shaft. Need 2pcs.

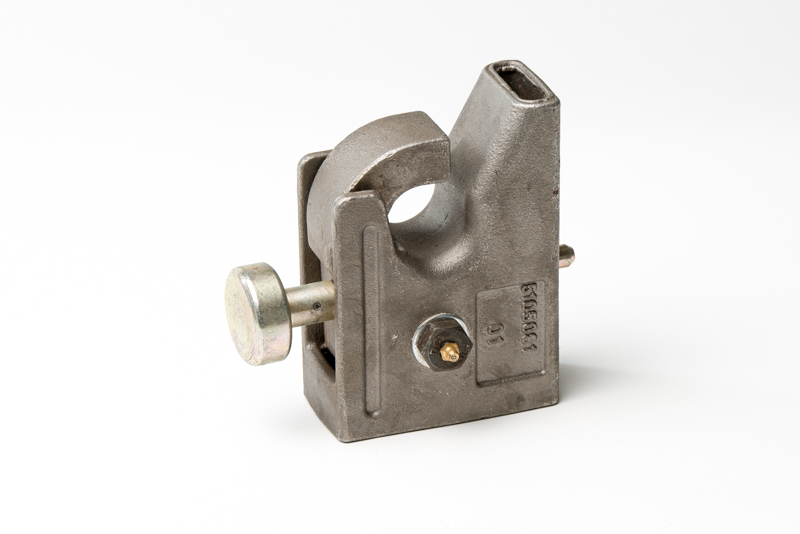

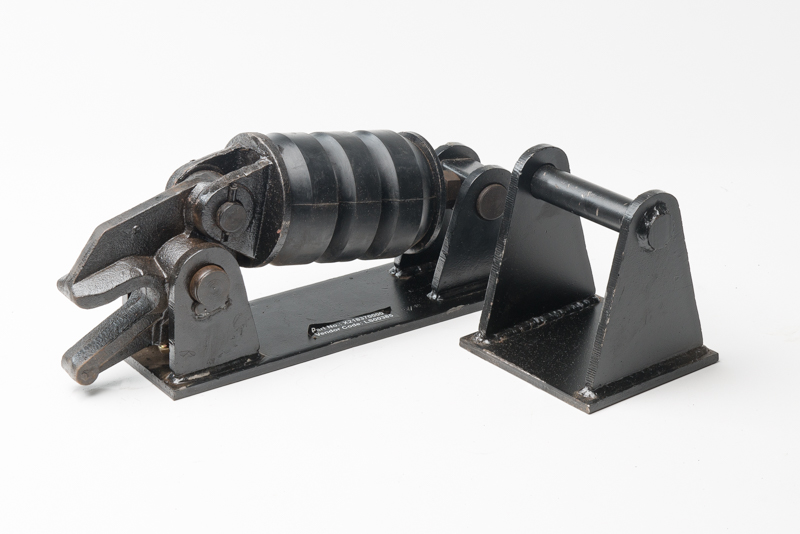

A mechanic body lock WINLock for empty body. Assembly parts for subframe and body are included. Disables pump effect of the empty body on rough terrain. Can be adjusted according to body weight. Product must be top coated.

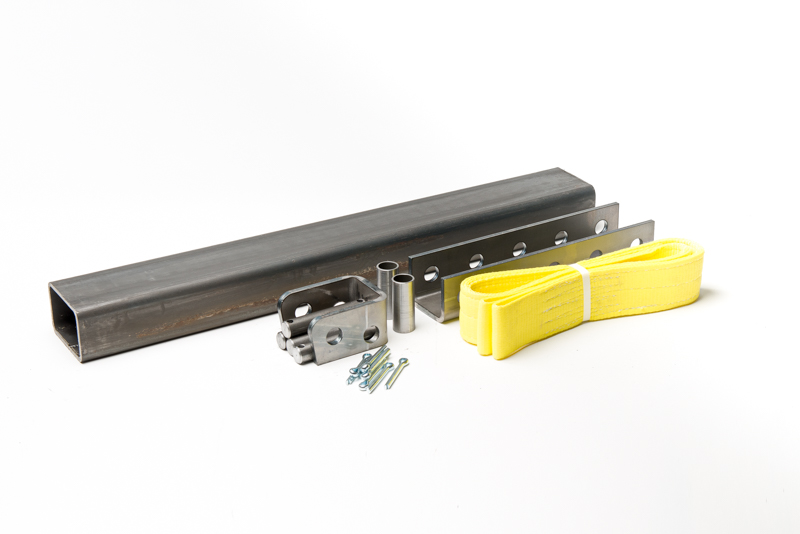

Retaining strap for rear tipping use. When adjusted correctly takes the negative load from the cylinder but is never to be assembled without tipping angle limiter (pneumatic or hydraulic). Breaking strength 200000N. Delivery content: housing for subframe, strap, locking pins, shafts, housing for body.

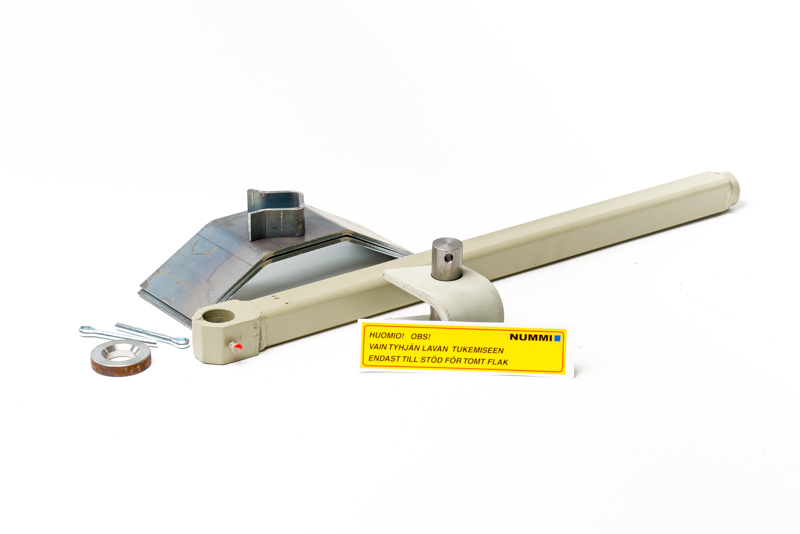

Service prop for empty body. Delivery content: housing for subframe, service prop, shafts, counter ring to the body.
