Oil tanks

Net volume 250l. A steel tank to be mounted on the side of the truck. Dimensions: H684mm + W657mm+ L985mm. Content of delivery: breather filter, oil level indicator, suction connector2½" , assembly kit, drain plug, return filter RFM270.

Net volume 250l. A steel tank to be mounted on the side of the truck. Dimensions: H684mm + W657mm+ L985mm. Content of delivery: breather filter, oil level indicator, suction connector2½" , assembly kit, drain plug, return filter RFM270.

Net volume 150l. A steel tank to be mounted on the side of the truck. Dimensions: H640mm + W600mm+ L620mm. Content of delivery: breather filter, oil level indicator, suction connector, assembly kit, drain plug, flange for return filter.

Net volume 85l. An aluminum tank to be mounted on the side of the truck. Dimensions: H530mm + W640mm+ L390mm. Content of delivery: breather filter, oil level indicator, assembly kit. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 102l. An aluminum tank to be mounted on the side of the truck. Dimensions: H530mm + W680mm+ L520mm. Content of delivery: breather filter, oil level indicator, assembly kit. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 200l. A steel tank to be mounted on the side of the truck. Dimensions: H684mm + W657mm+ L805mm. Content of delivery: breather filter, oil level indicator, suction connector2½" , assembly kit, drain plug, return filter RFM270.

Net volume 100l. A steel tank to be mounted on the side of the truck. Dimensions: H640mm + W600mm+ L300mm. Content of delivery: breather filter, oil level indicator, suction connector , assembly kit, drain plug, flange for return filter.

Net volume 83l. A steel tank to be mounted behind the cabin. Dimensions: H500mm + W640mm+ L350mm. Content of delivery: breather filter, oil level indicator, suction connector 2”, assembly kit.Return filter (89mm) to be ordered separately, code 360510987.

Net volume 100l. A steel tank to be mounted on the side of the truck. Dimensions: H640mm + W600mm+ L425mm. Content of delivery: breather filter, oil level indicator, suction connector , assembly kit, drain plug, flange for return filter.

Net volume 96l. A steel tank to be mounted behind the cabin. Dimensions: H500mm + W640mm+ L400mm. Content of delivery: breather filter, oil level indicator, suction connector 2½”, assembly kit. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 70l. A steel tank to be mounted behind the cabin. Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately.

Net volume 123l. A steel tank to be mounted behind the cabin. Dimensions: H700mm + W640mm+ L350mm. Content of delivery: breather filter, oil level indicator, suction connector 2½”, assembly kit. Return filter (89mm) to be ordered separately, code 360510987.

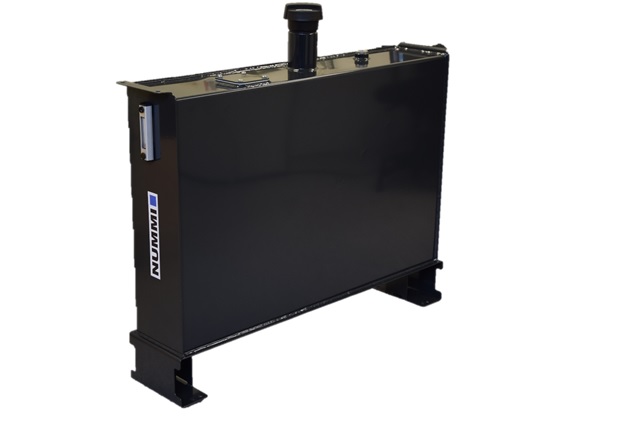

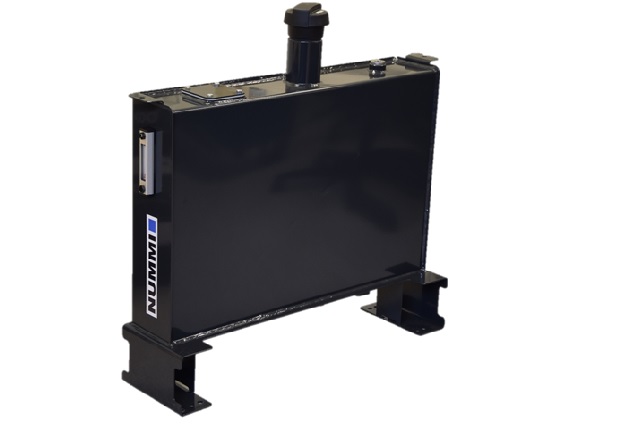

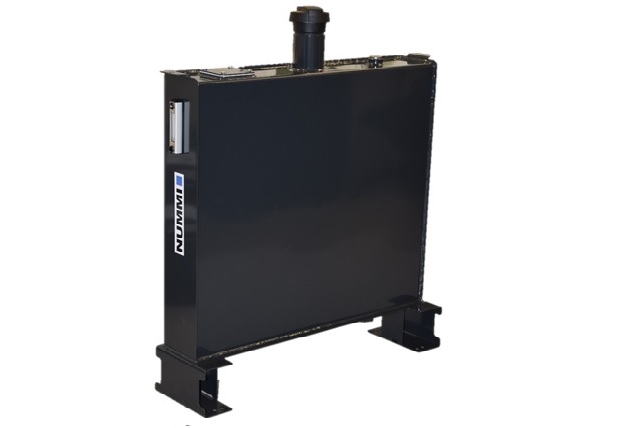

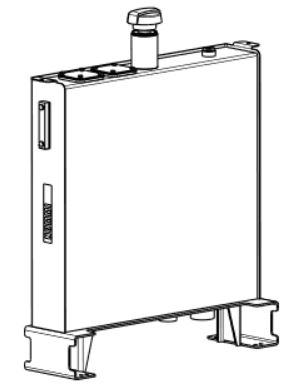

Net volume 90l. A steel tank to be mounted behind the cabin. Dimensions: H1194mm + W940mm+ L160mm.Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately, code for Return filter 360510987.

Net volume 142l. A steel tank to be mounted behind the cabin. Dimensions: H700mm + W640mm+ L400mm. Content of delivery: breather filter, oil level indicator, suction connector 2½”, assembly kit. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 90l. A steel tank to be mounted behind the cabin. Dimensions: H1194mm + W940mm+ L160mm.Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately, code for Return filter 360510987.

Net volume 100l. An aluminum tank to be mounted behind the cabin. Dimensions: H1150mm + W964mm+ L240mm. Content of delivery: breather filter, oil level indicator, suction connector 2”, assembly kit with rubber mounts. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 120l. A steel tank to be mounted behind the cabin. Dimensions: H1340mm + W940mm+ L160mm. Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately, code for Return filter 360510987.

Net volume 100l. An aluminum tank to be mounted behind the cabin. Dimensions: H1150mm + W964mm+ L240mm. Content of delivery: breather filter, oil level indicator, suction connector 2”, assembly kit with rubber mounts. Return filter (89mm) to be ordered separately, code 360510987.

Net volume 150l. A steel tank to be mounted behind the cabin. Dimensions: H1077mm + W1168mm+ L160mm. Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately, code for Return filter 360510987.

Net volume 60l. A steel tank to be mounted behind the cabin. Dimensions: H815mm + W940mm+ L160mm. Content of delivery: breather filter, oil level indicator, assembly kit with rubber mounts, return line plug. Return filter (89mm), suction connector to be ordered separately, code for Return filter 360510987.

Filter cartridge for pressure filter 360302287.

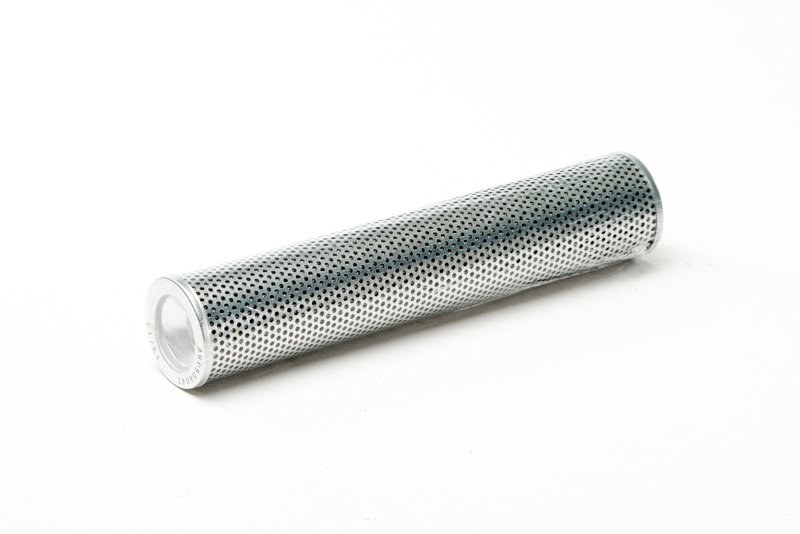

Filter cartridge for return filter 360510987.

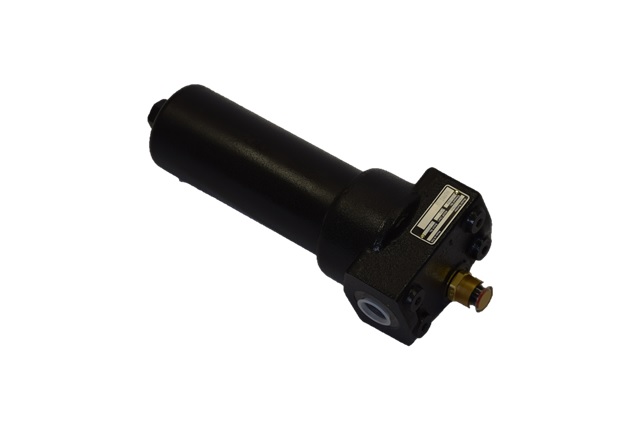

Pressure filter to be fitted between pump and control valve. Max flow rate 140l/min, max pressure 450bar, filtration rate 10µm. Equipped with visual differential pressure indicator for possible glogging of filter. Electrical pressure difference indicator is also available 360510965.

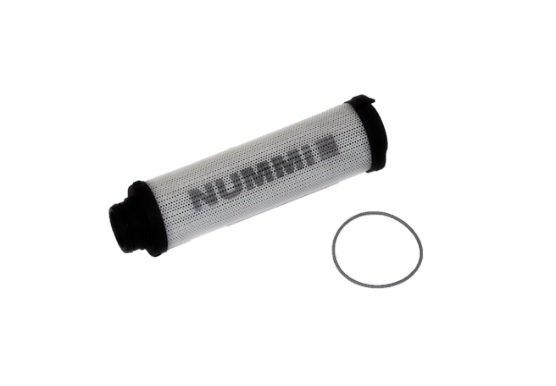

Filter element for pressurefilter 360510966. Max flow rate 140l/min, max pressure 450bar, filtration rate 10µm.

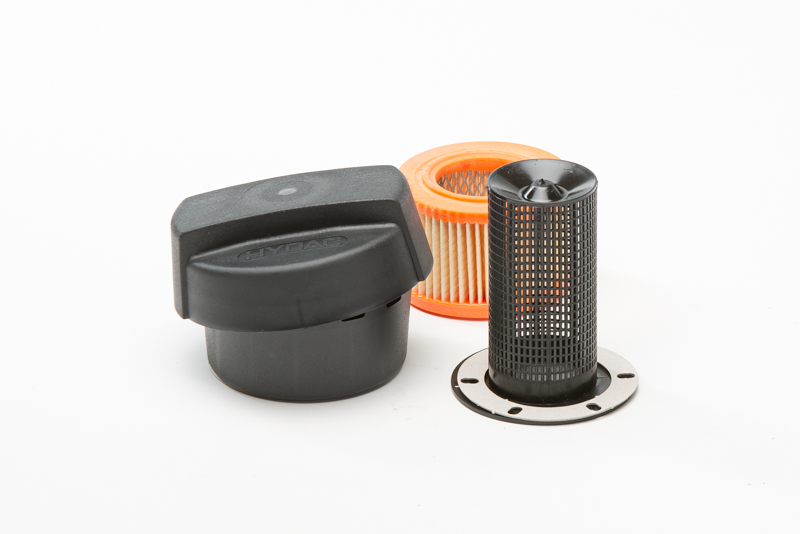

Hydac made breather filter for oil tanks, kit includes: filter cartridge, housing and its foot.

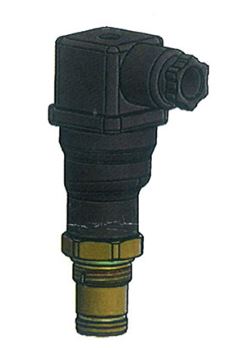

Electrical pressure differential pressure indicator for pressurefilter 360510966.

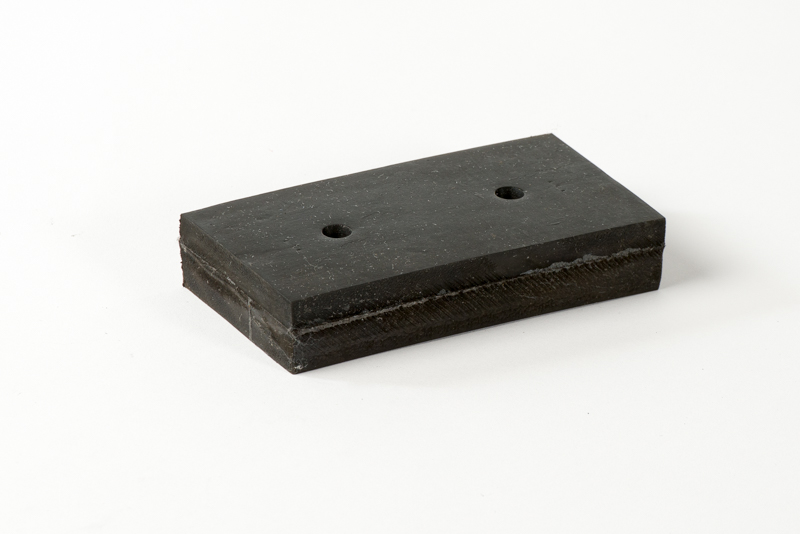

Rubber pad 70x130 mm, used as cushion between oil tank and chassis frame.

Complete return oil filter to be mounted on the oil tank. Flow rate 220l/min, filtration level 10µm, two return oil connections (another one plugged as standard), spring loaded bypass valve that opens when the pressure rises. Equipped with visual differential pressure indicator for possible glogging of filter.

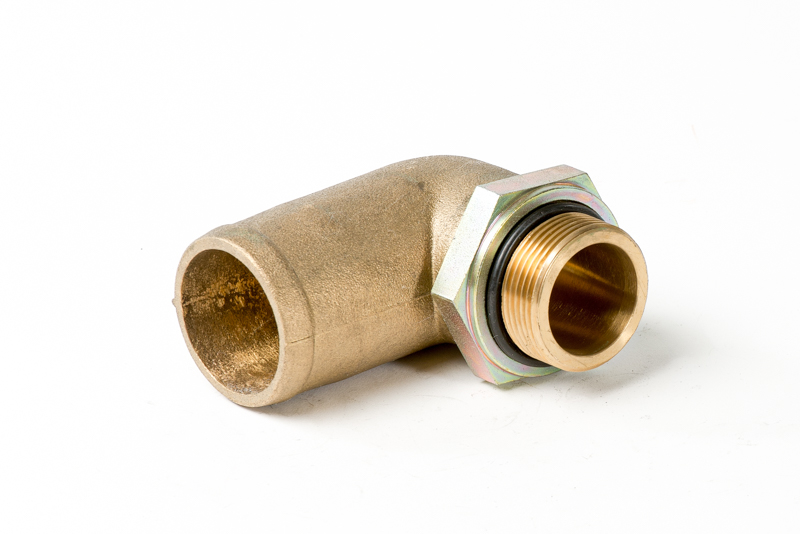

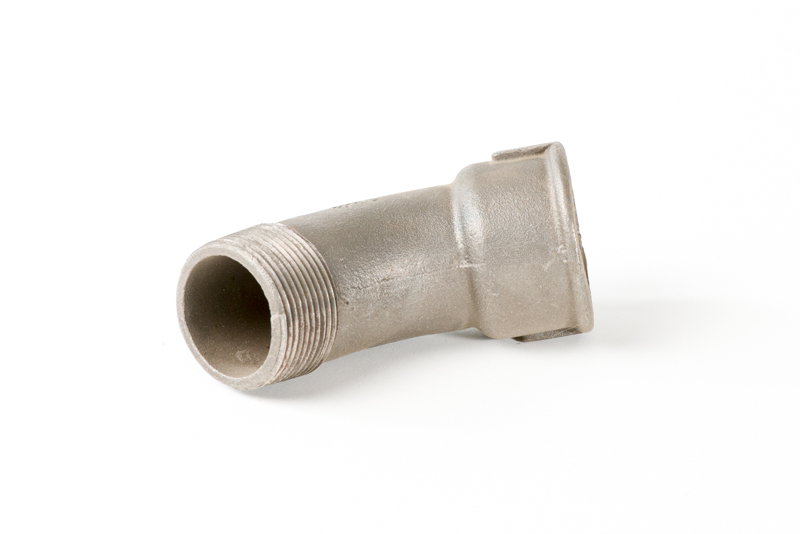

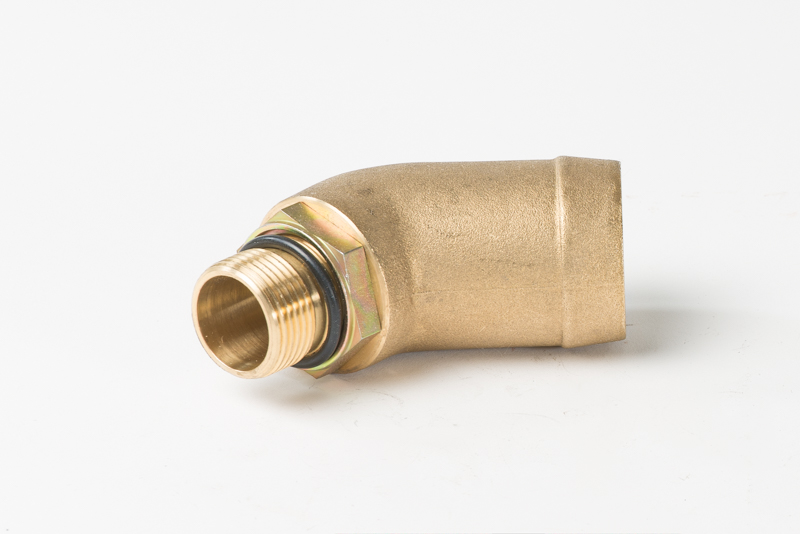

Suction connector G ¼ / for 2” hose 45° angle

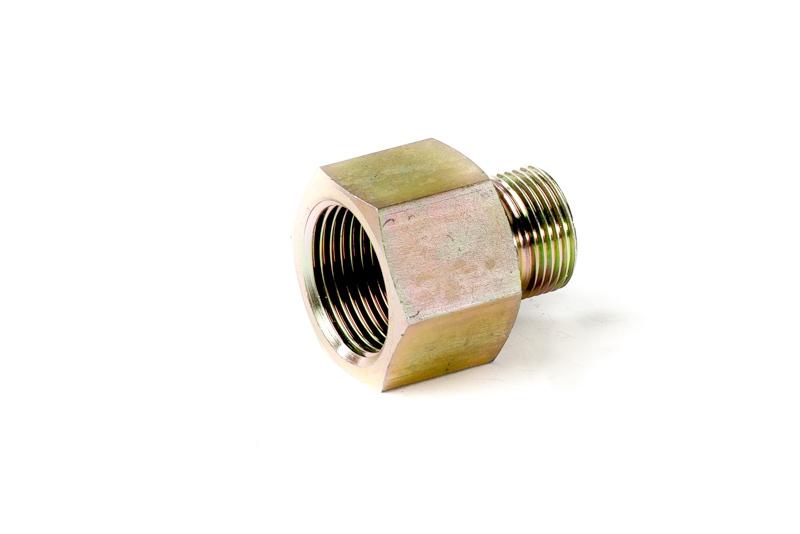

Straight joint R ¾” OT / R1” IT

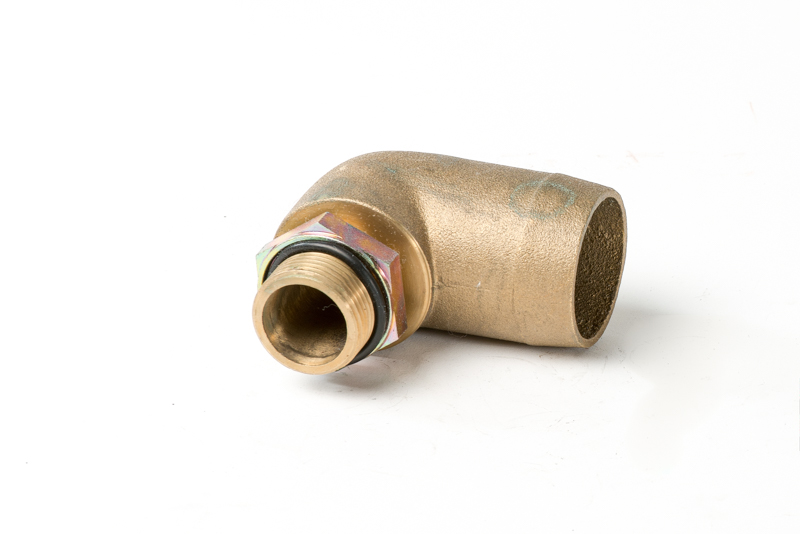

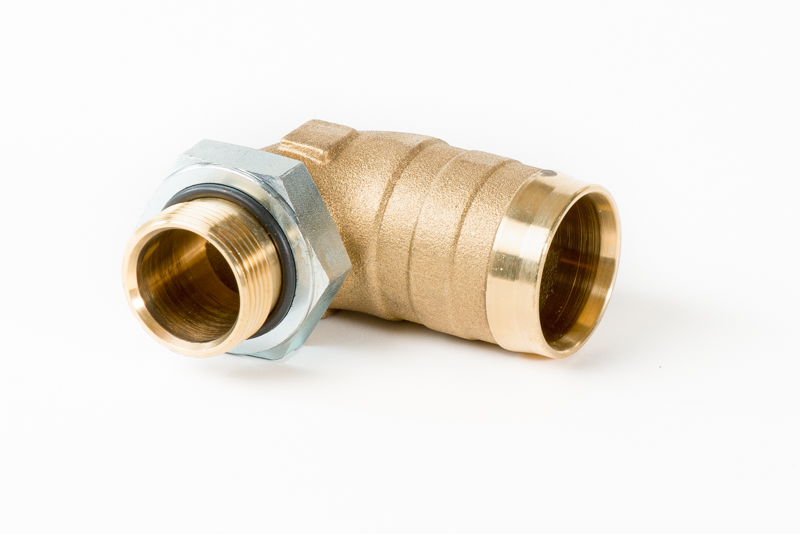

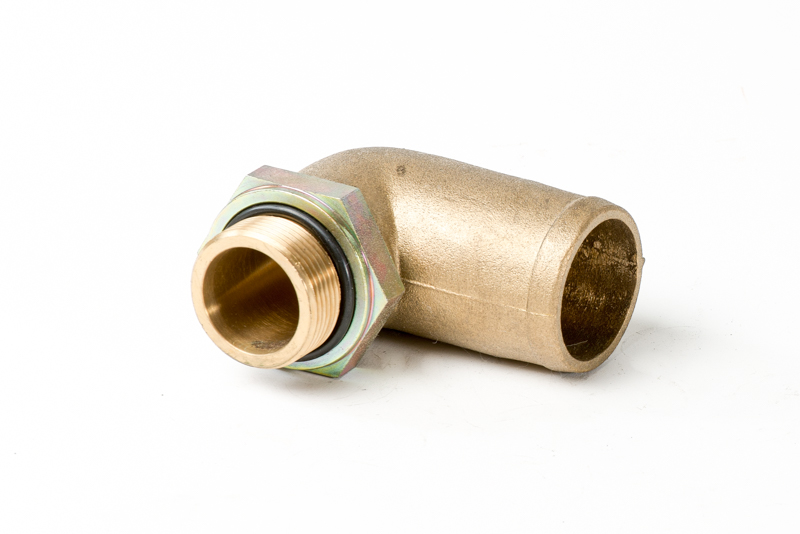

Angular 90º connector R 1 ¼” thread / 2” hose

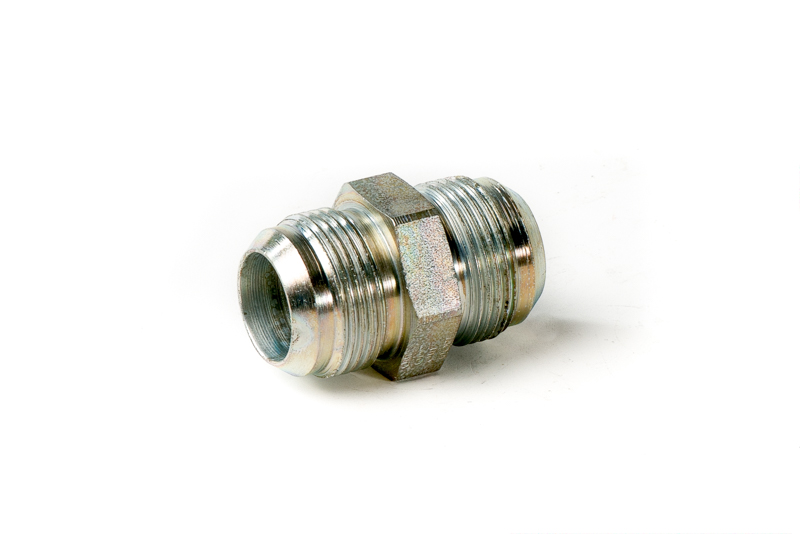

Straight joint 25JIC OT / 25 JIC OT

Straight joint 30CR / R1”

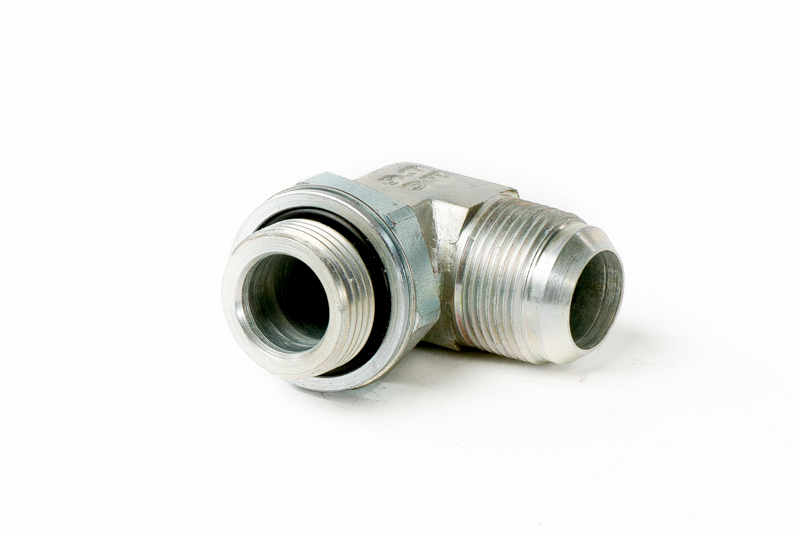

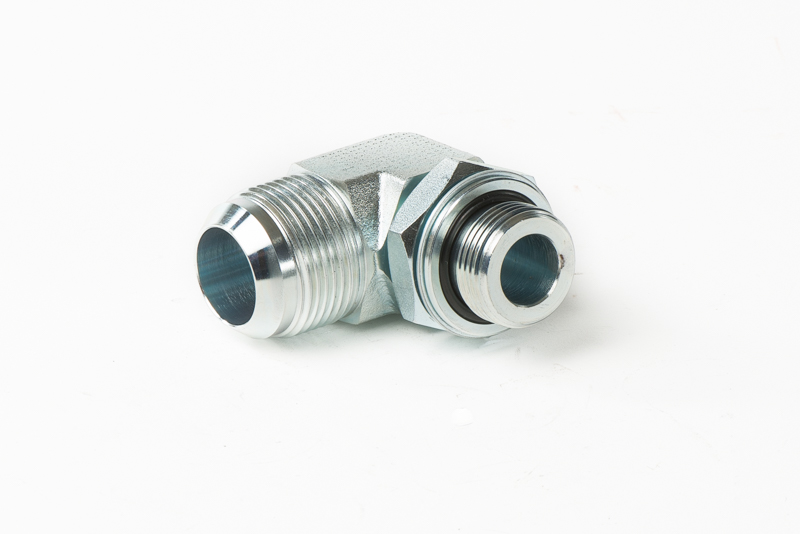

Angle joint 25JIC R1”

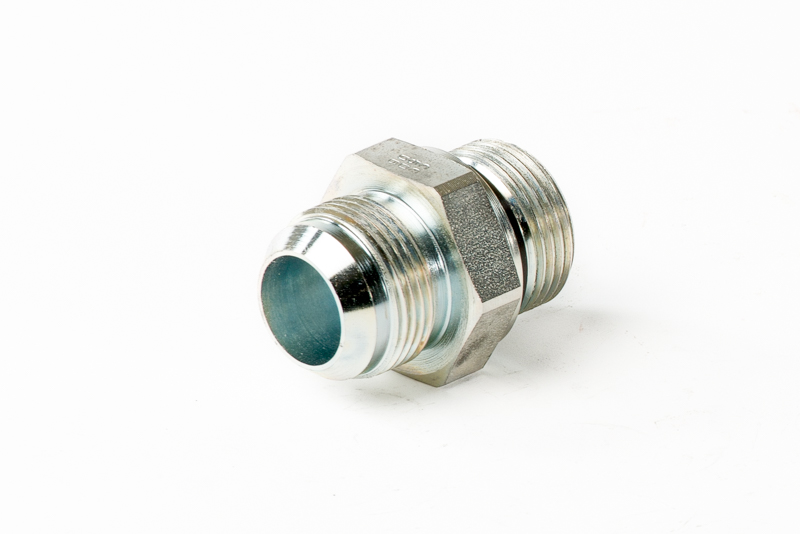

Straight joint 25JIC R1”

Tank connector M52x2/2" 90º angle

Ball valve 2” for oil tanks, including parts: ball valve R 1½” 30bar (360505462), tank connector G2"/G1½" (360511151), hose connector G1½”/51mm (360409261). Adjustable lever direction.

Angular 90º connector M52 internal/external threads

Ball valve 2” for oil tanks, including parts: ball valve R 2” 30bar (360509787), hose connector G2”/64mm(360207515).

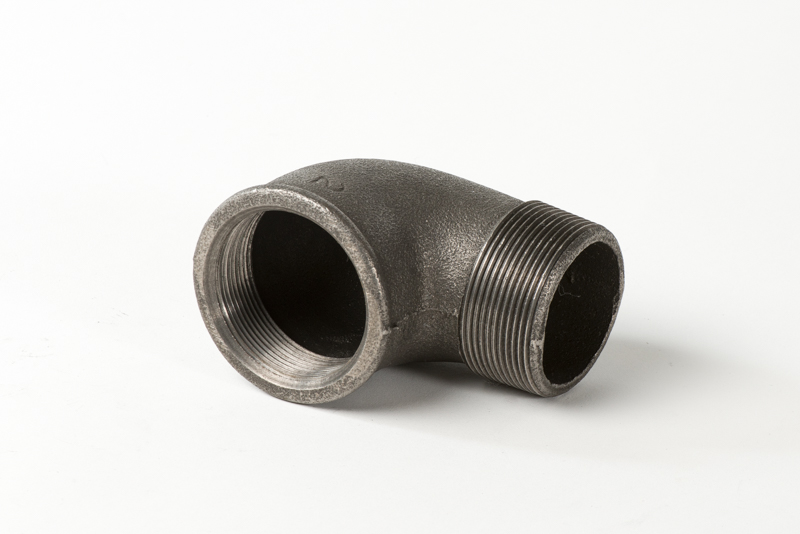

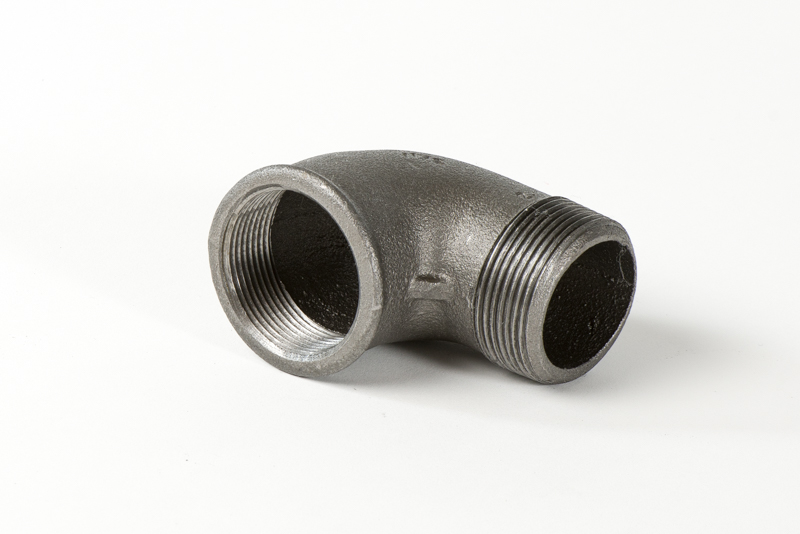

Angular 90º connector R 2” internal/external threads

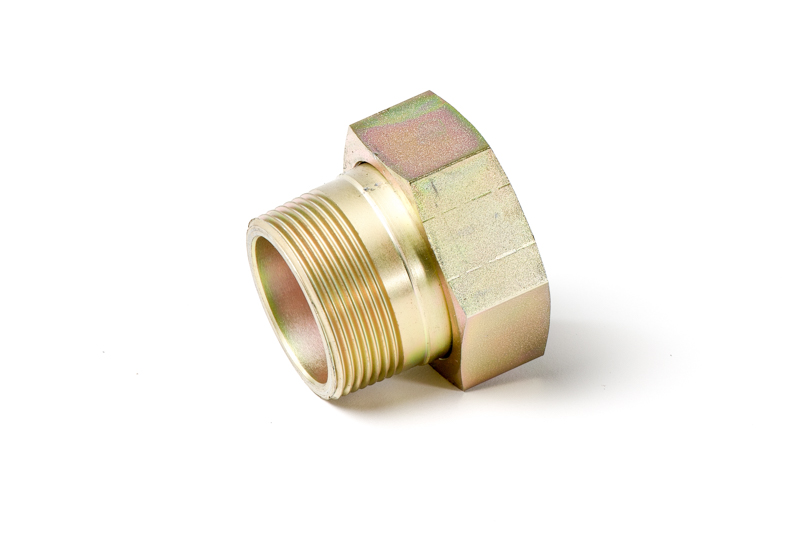

Tank connector M52x2/R 1 ½” for ball valve R 1 ½”

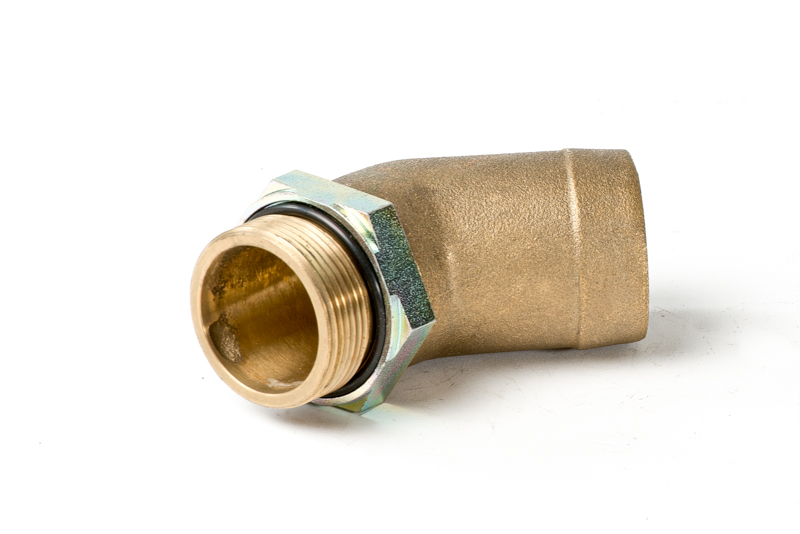

Angular 45º connector R 1 ½” internal/external threads

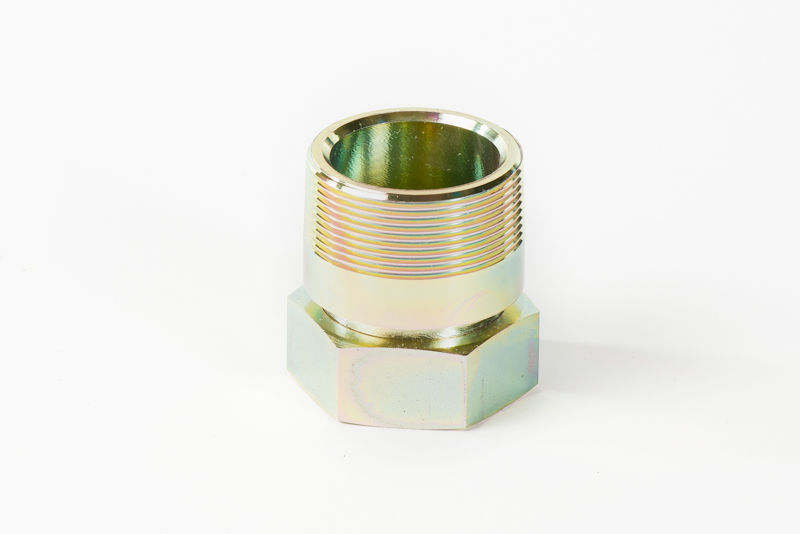

Tank connector M52x2/R 2” for ball valve R 2”

Angle joint 25JIC R3/4”

Hose connector R 1 ½"/51mm

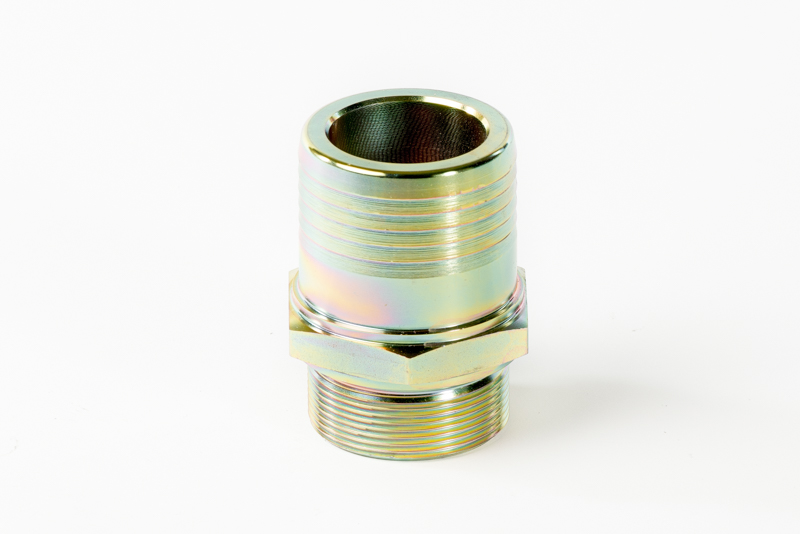

Hose connector G 2"/64mm

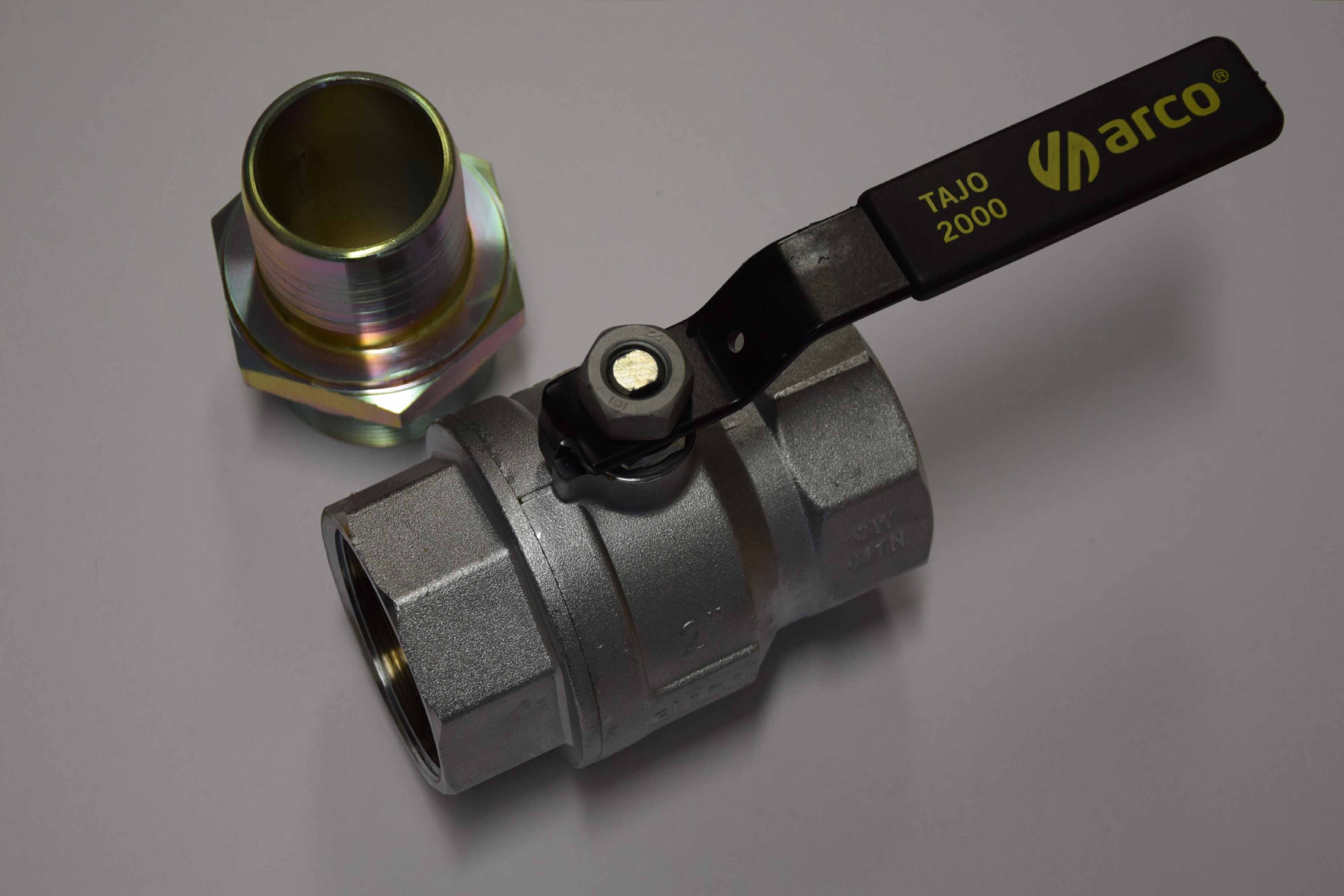

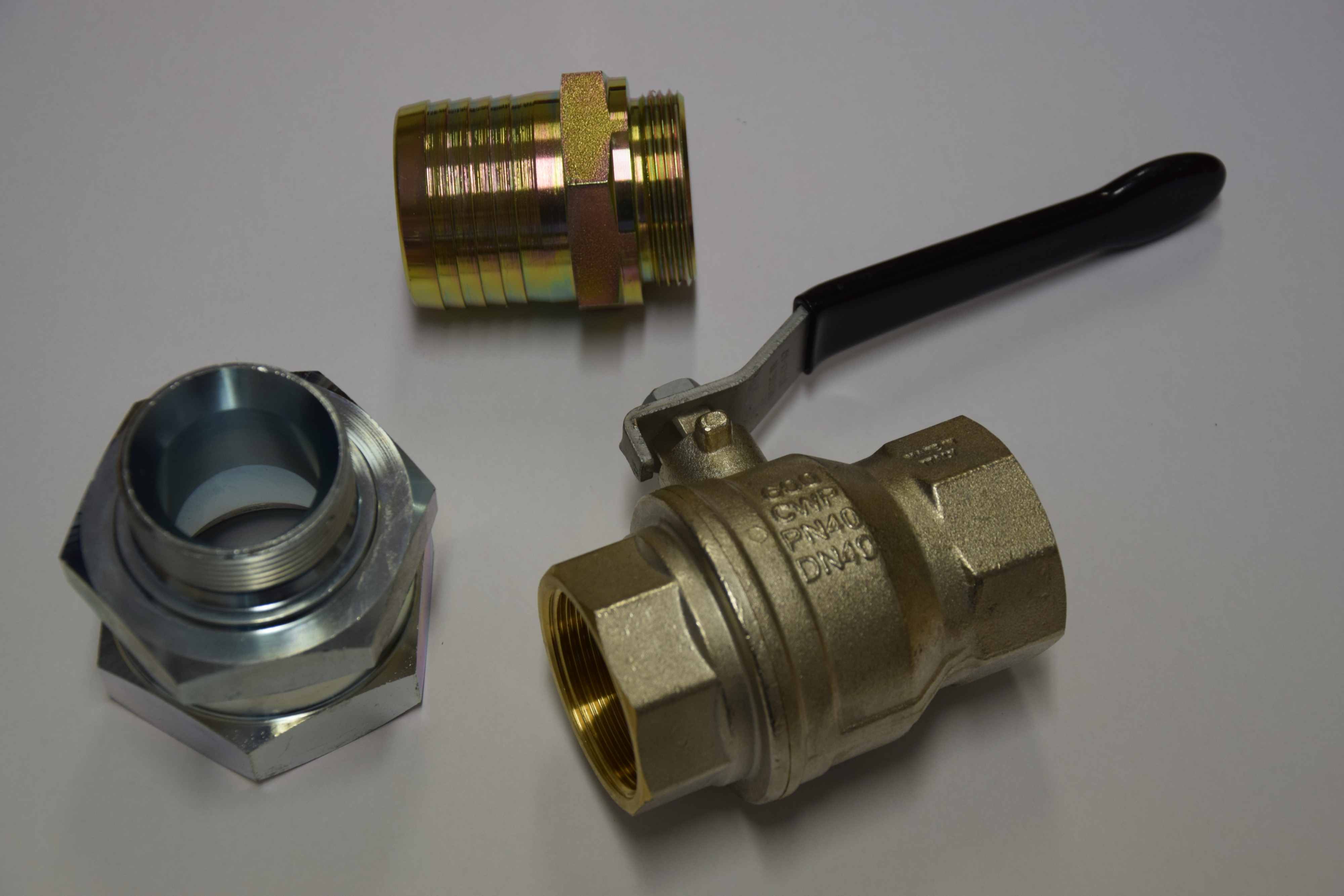

Ball valve 1 ½” for oil tanks, including parts: ball valve R 1 ½” 30bar(360505465), tank connector M52x2/R 1 ½”,(380409262), hose connector  1 ½"/51mm (360409261).

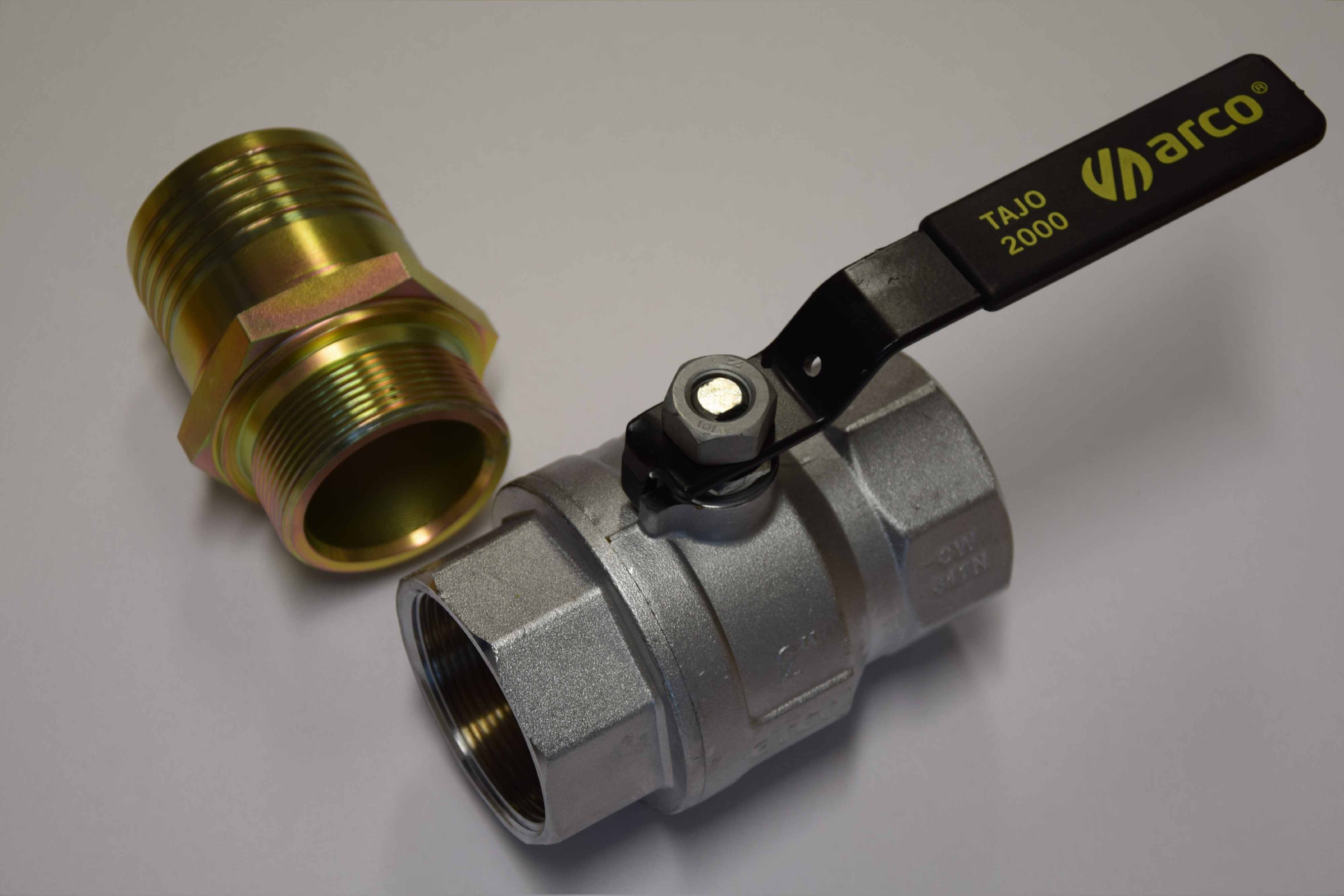

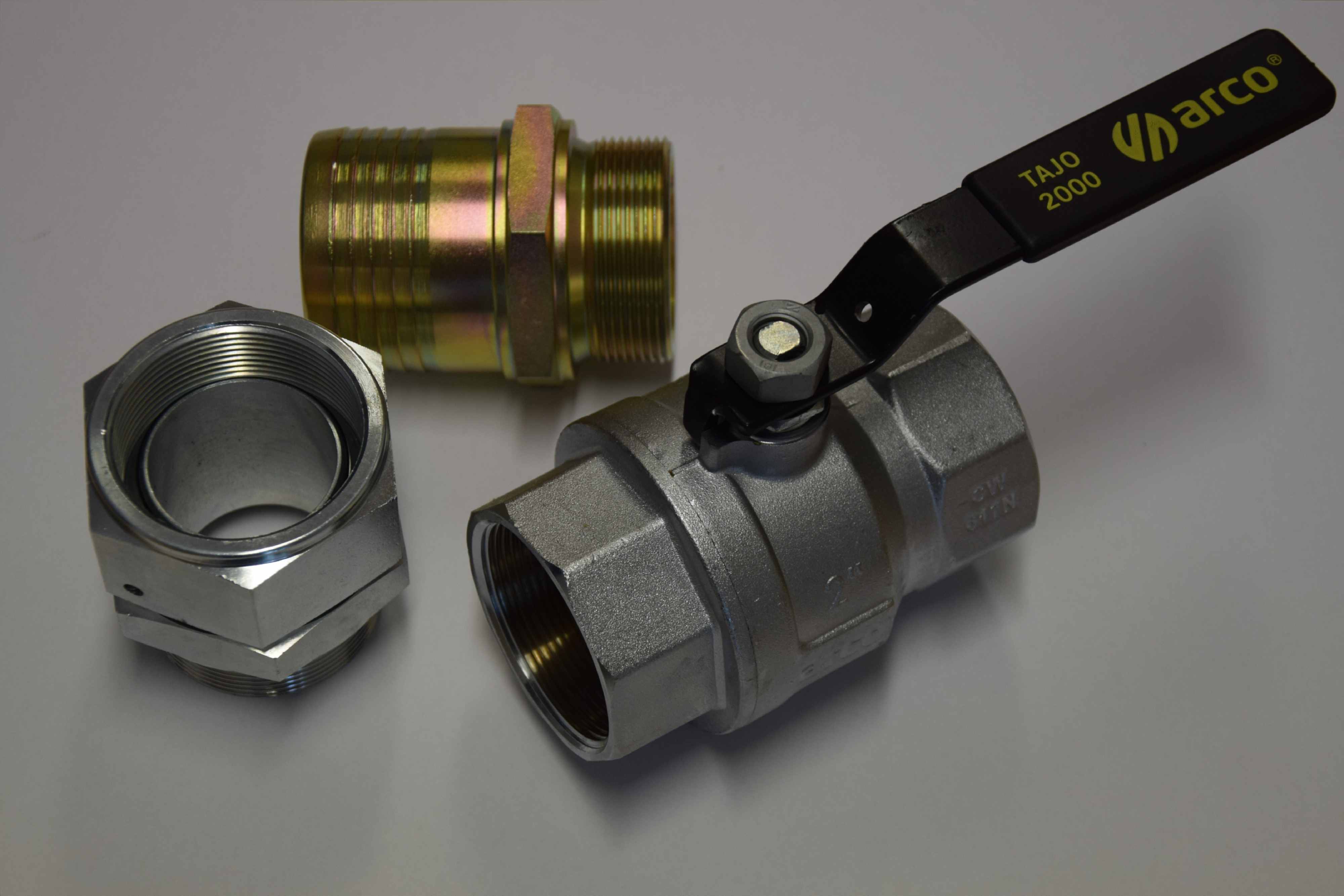

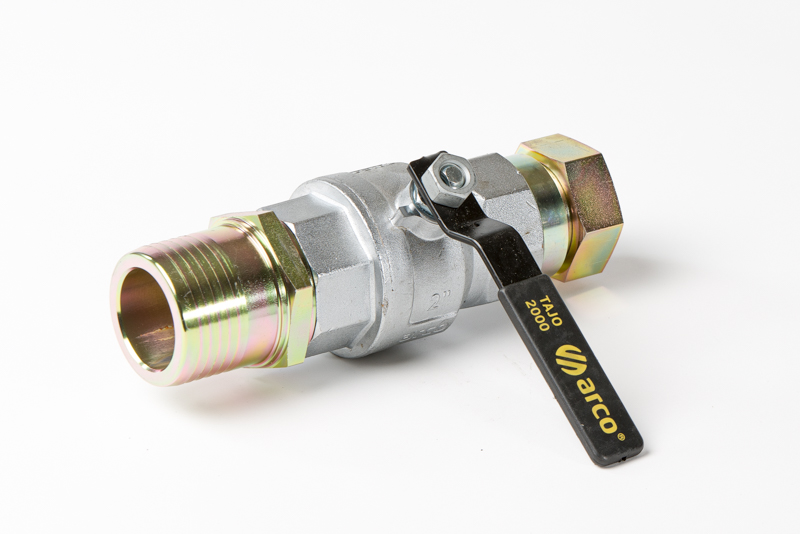

Ball valve 2” for oil tanks, including parts: ball valve R 2” 30bar (360509787), tank connector M52x2/R 2” (380207644), hose connector G2”/64mm (360207515).

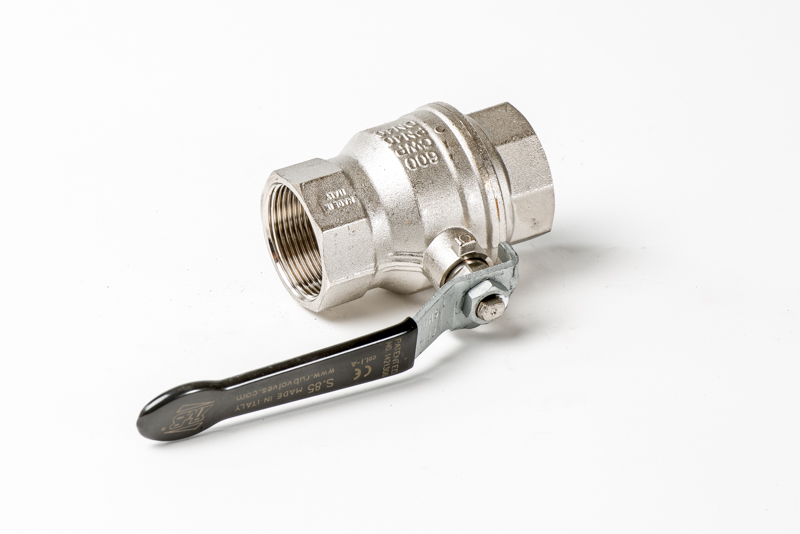

Ball valve R 1 ½” 30bar

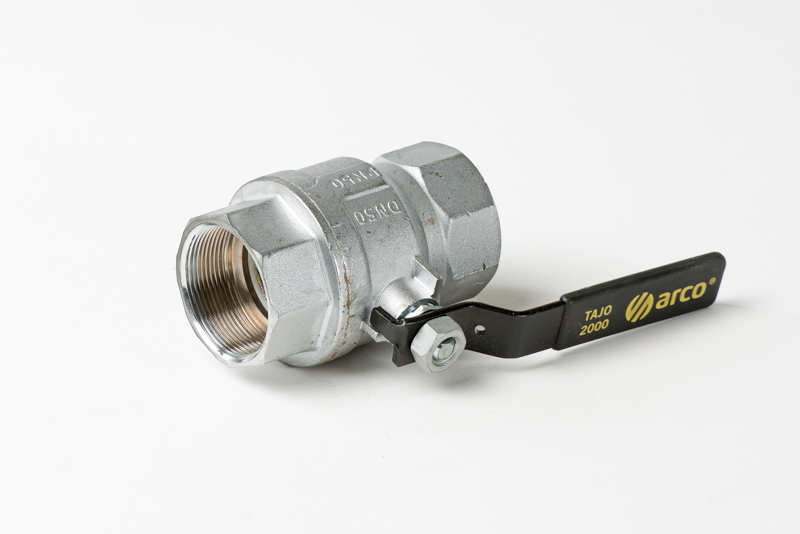

Ball valve R 2” 30bar

Ball valve 2” for oil tanks, including parts: ball valve R 2” 30bar (360509787), tank connector G2"” (360511150), hose connector G2”/64mm (360207515). Adjustable lever direction.

Ball valve 2” for oil tanks, including parts: ball valve R 2” 30bar (360509787), hose connector G2”/51mm (360207681).
