Valves

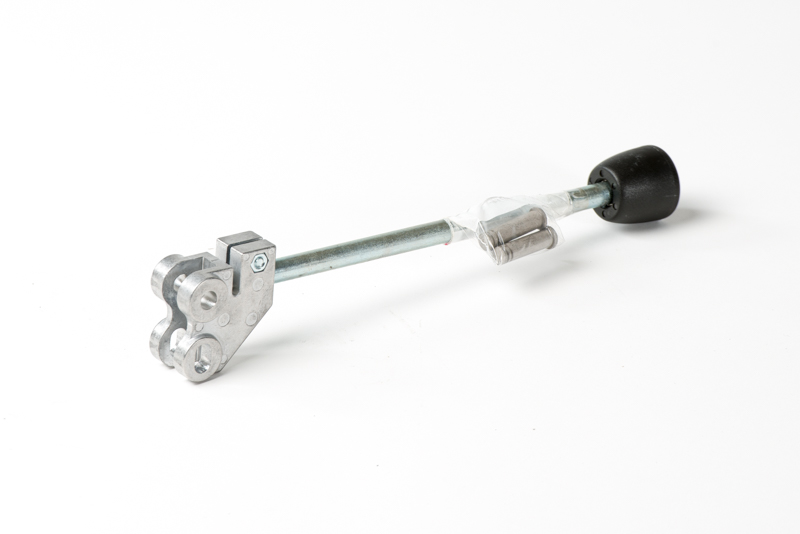

Bracket for 3-position spool with manual control.

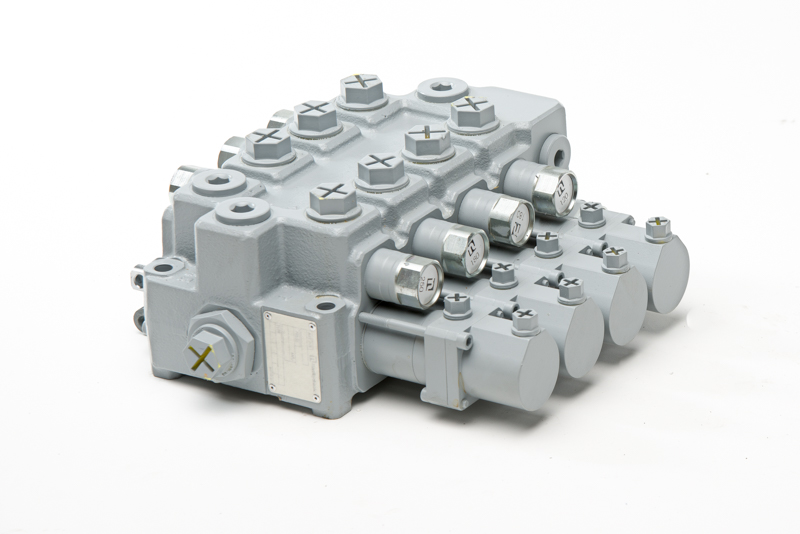

A Nordhydraulic made 4 section, cast-iron, Monoblock valve with controllable spindles, one for e.g. tipping use, one for tailgate…

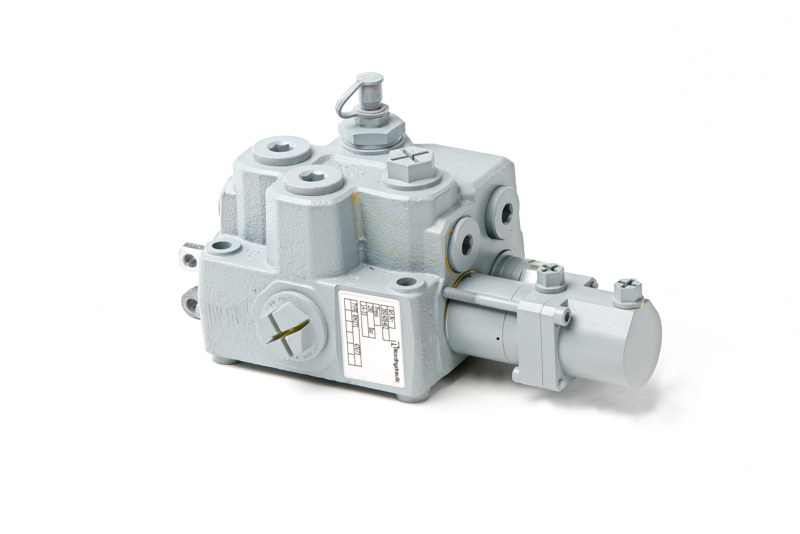

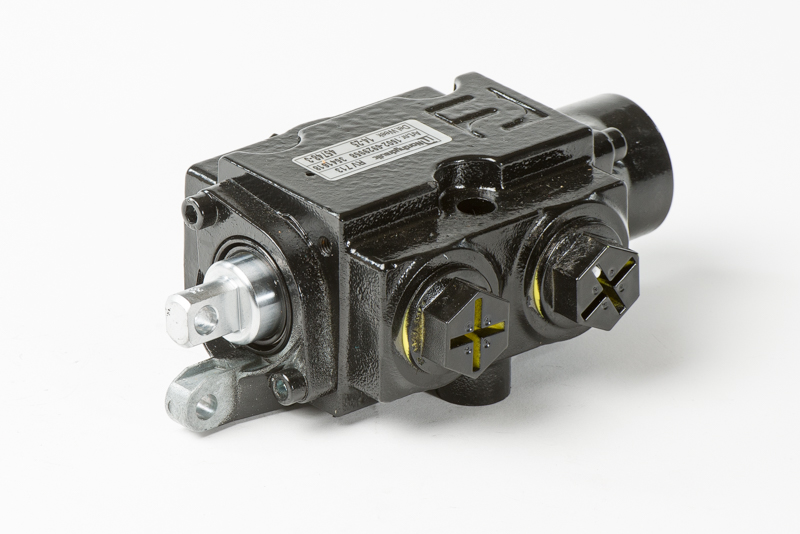

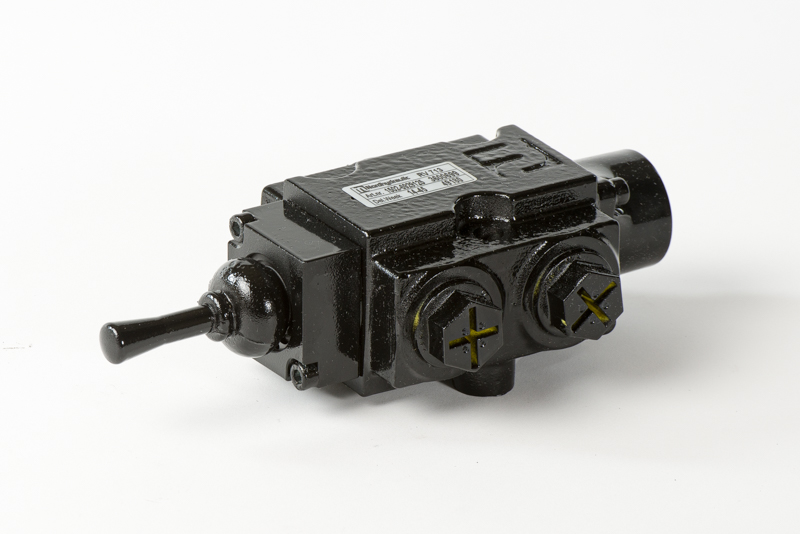

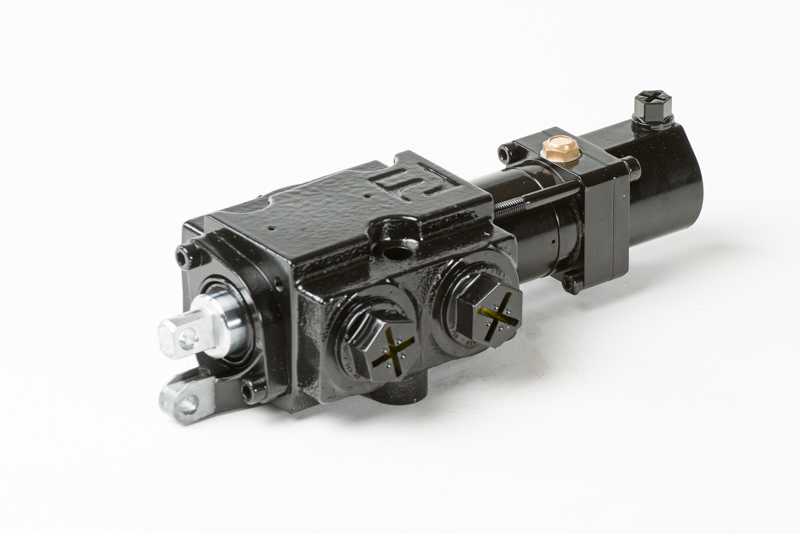

A Nordhydraulic made single section, cast-iron, monoblock valve with controllable spindle for e.g. tipping use.

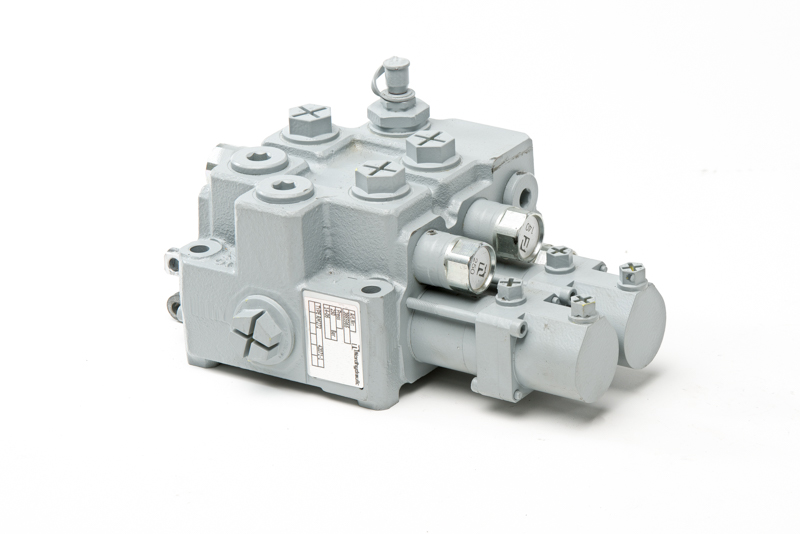

A Nordhydraulic made double section, cast-iron, Monoblock valve with controllable spindles, one for e.g. tipping use, one for tailgate.

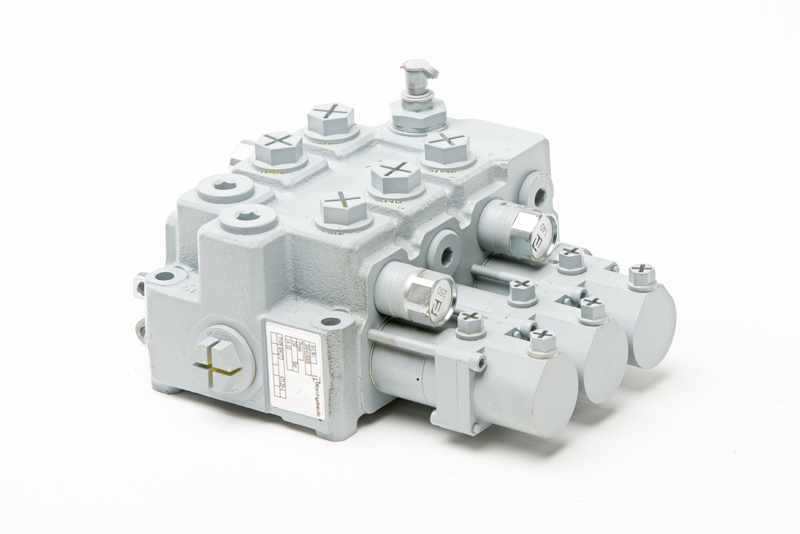

A Nordhydraulic made 3 section, cast-iron, Monoblock valve with controllable spindles, one for e.g. tipping use, one for tailgate...

A Nordhydraulic made hydraulic tipping angle limiter, for example to be used in the trailer. Can be assembled with separate return oil line or as a single line connection.

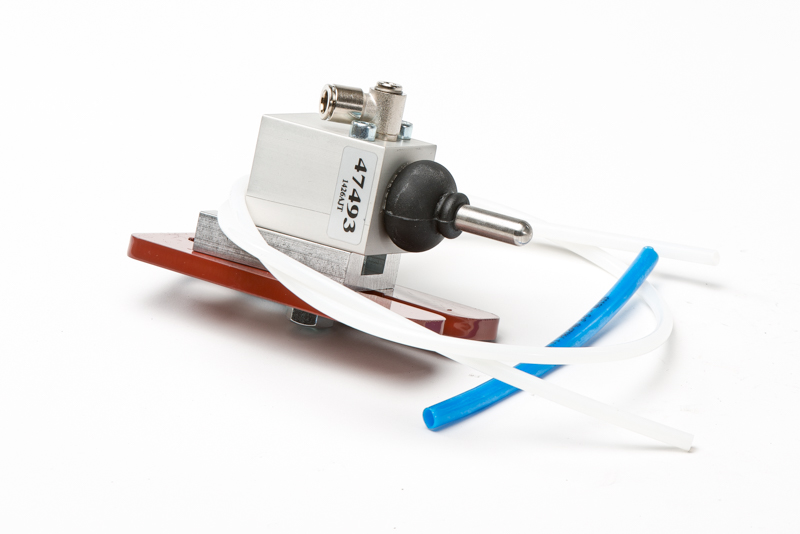

A pneumatic valve for controlling functions steered by a pneumatic spindle, for example usable as a tipping angle limiter for e.g. SUT cylinders. This valve shuts off pressure inlet.

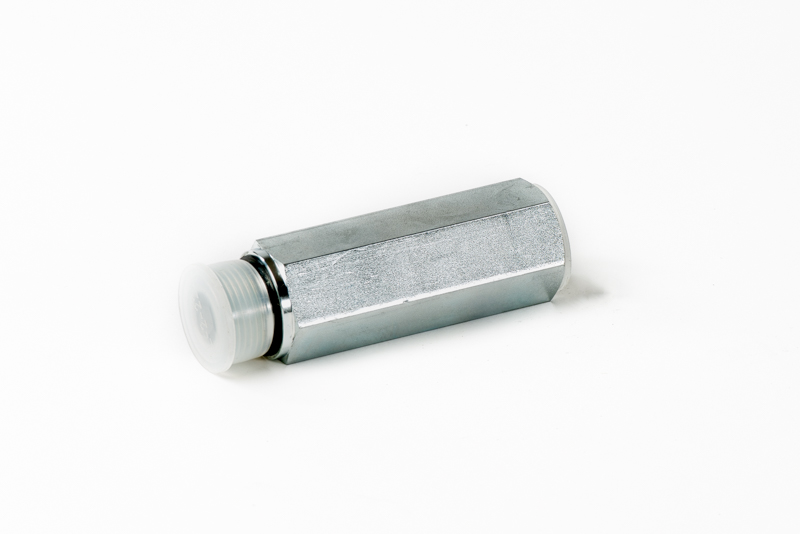

3/4" BSP ported pipe pressure control valve. Flow from 20lpm to 160lpm. Max. pressure 350bar. Adjustable and sealed. TBD205 port relief can be changed to adjust to pressure level.

A hydraulic valve for controlling functions steered by a hydraulic spindle, for example usable as a tipping angle limiter for e.g. SUT cylinders. The kit includes 3/4" elbow connectors

A pneumatic valve for controlling functions steered by a pneumatic spindle, for example usable as a tipping angle limiter for e.g. TT cylinders. The kit includes mounting hardware for the valve. With the kit you can finalize the assembly.

A pneumatic valve for controlling functions steered by a pneumatic spindle, for example usable as a tipping angle limiter for e.g. JTD / DF cylinders. The kit includes mounting hardware for the valve. With the kit you can finalize the assembly.

A pneumatic valve for controlling functions steered by a pneumatic spindle, for example usable as a tipping angle limiter. No mounting kit included

A hydraulic valve for controlling functions steered by a hydraulic spindle, for example usable as a tipping angle limiter for e.g. SDC cylinders.

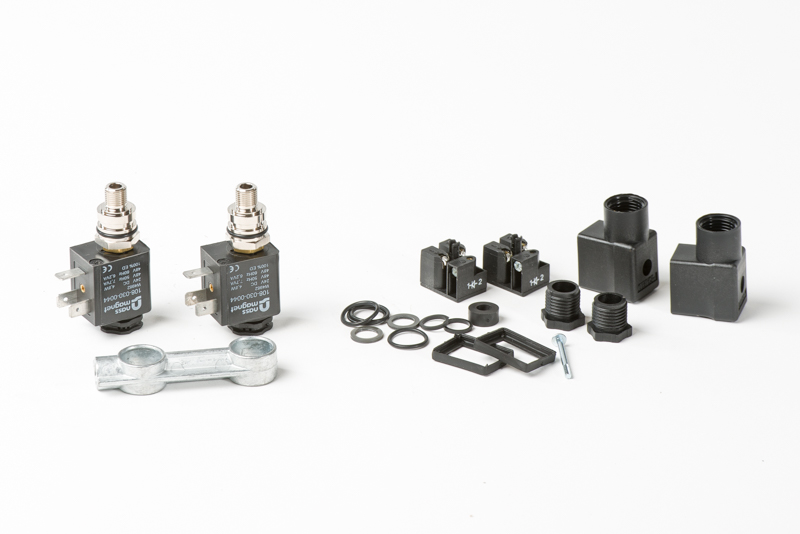

An electropneumatic spindle control kit for one pneumatically controlled spindle. The pneumatically controlled spindle in Nordhydraulic or Nimco valves can be controlled with magnetic valves electronically. Disables the need to assemble pneumatic lines to the cabin. For 24 volt systems only.

90° bent hand lever for the manual controlling of Nordhydraulic valves.

Straight hand lever for the manual controlling of Nordhydraulic valves.

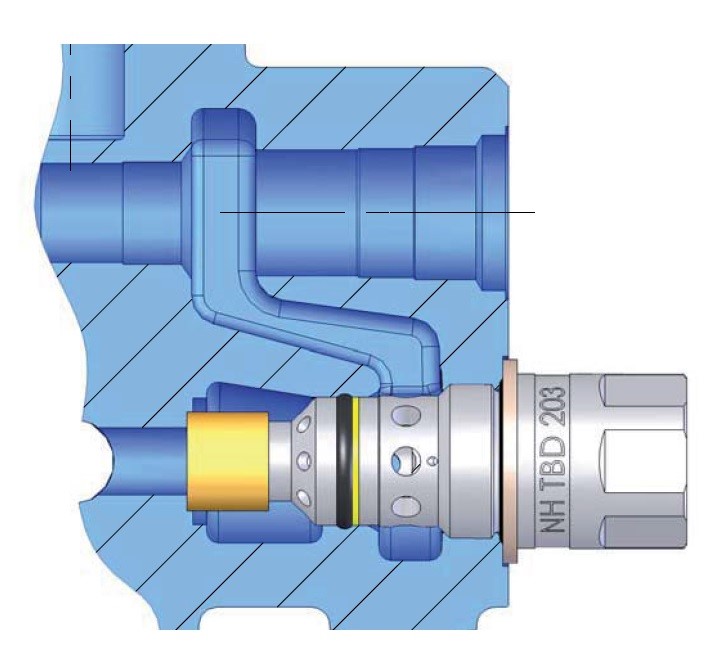

The main relief valve is a differential area, direct acting relief valve for the main circuit of Nordhydraulik tipping valves. It is adjusted to 320 bar

Päävaroventtiili RM270 venttiileihin, säädetty paine 210 bar.

The main relief valve is a differential area, direct acting relief valve for the main circuit of Nordhydraulik tipping valves. It is adjusted to 250 bar

The main relief valve is a differential area, direct acting relief valve for the main circuit of Nordhydraulik tipping valves. It is adjusted to 275 bar

Päävaroventtiili RM270 venttiileihin, säädetty paine 170 bar.

Päävaroventtiili RM270 venttiileihin, säädetty paine 190 bar.

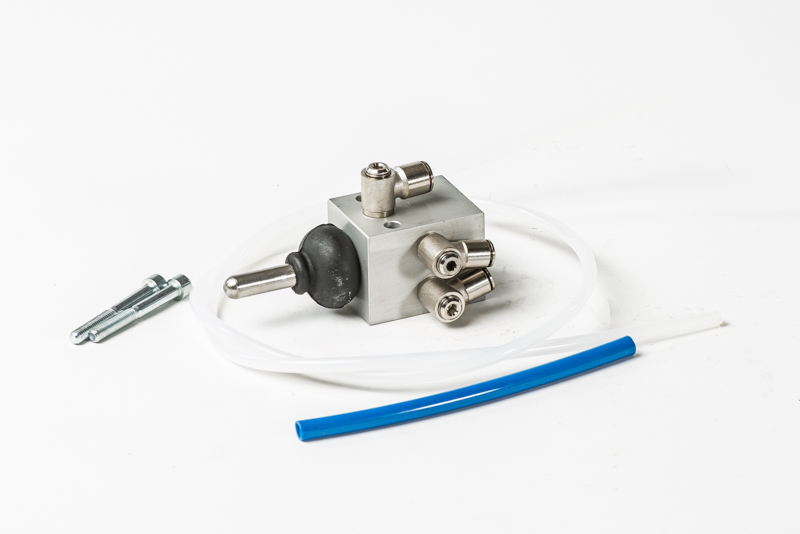

 A narrow pneumatic control valve to be mounted to the cabin – equipped with one electric rocker switch. Usable for the tipping cylinder and tail gate controlling. The pneumatic control enables soft controlling of the tipping cylinder.

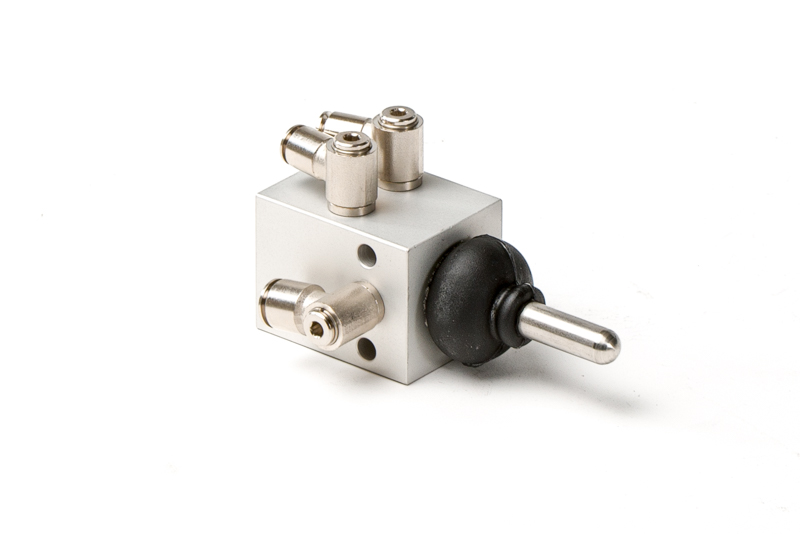

 A narrow pneumatic control valve to be mounted to the cabin, usable for the tipping cylinder. The pneumatic control enables soft controlling of the tipping cylinder.

A narrow pneumatic control valve to be mounted to the cabin – equipped with one electric rocker switch and two electric buttons, one function each. Usable for the tipping cylinder and tail gate controlling and for one additional function. The pneumatic control enables soft controlling of the tipping cylinder.

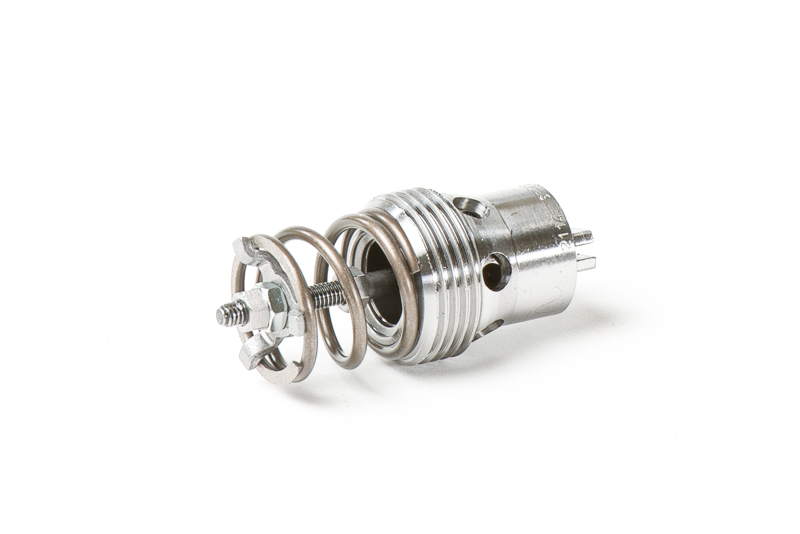

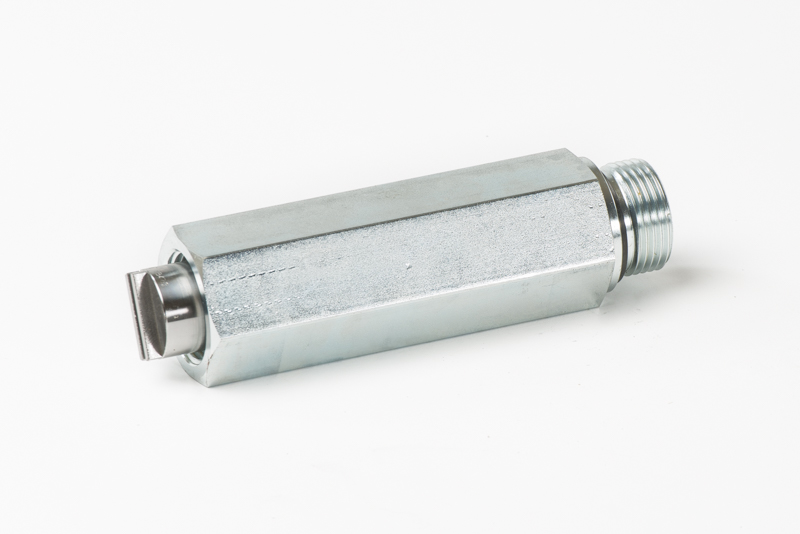

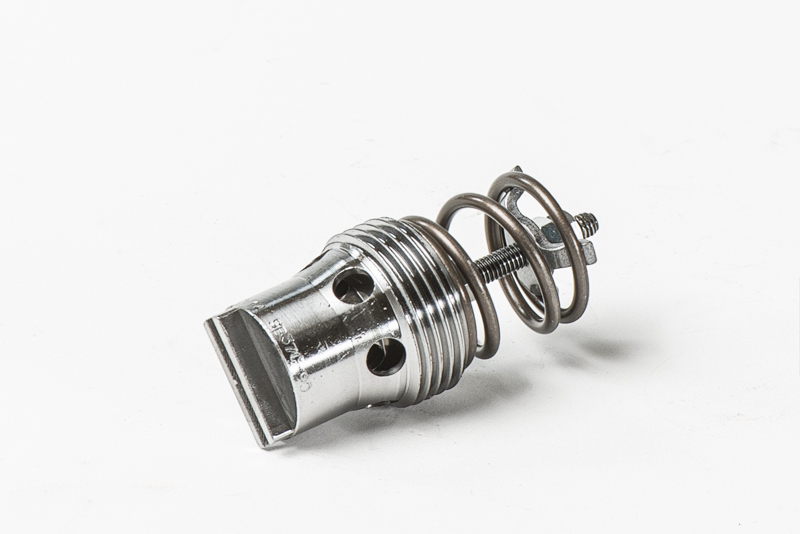

Constant flow rate valve for safe and controlled lowering of the tipping cylinder. Direct fit for TT cylinders oil inlet. Flow rate adjustable with a spring loaded screw. When mounted directly on the cylinder, also limits the lowering speed of the cylinder in the case of a hose break. For TT 115-152 models

Constant flow rate valve for safe and controlled lowering of the tipping cylinder. Direct fit for TT cylinders oil inlet. Flow rate adjustable with a spring loaded screw. When mounted directly on the cylinder, also limits the lowering speed of the cylinder in the case of a hose break. For TT/SUT 172-218 models.

Constant flow rate valve for safe and controlled lowering of the tipping cylinder. Equipped with ¾” thread, direct fit for example to RT cylinder bottoms. Flow rate of 120-150L/min for lowering. Not adjustable. When mounted directly on the cylinder, also limits the lowering speed of the cylinder in the case of a hose break.

Constant flow rate valve for safe and controlled lowering of the tipping cylinder. Equipped with 1” thread, direct fit for example to DF-, EF- and JT serie cylinders. Flow rate of 160-200L/min for lowering. Not adjustable. When mounted directly on the cylinder, also limits the lowering speed of the cylinder in the case of a hose break.

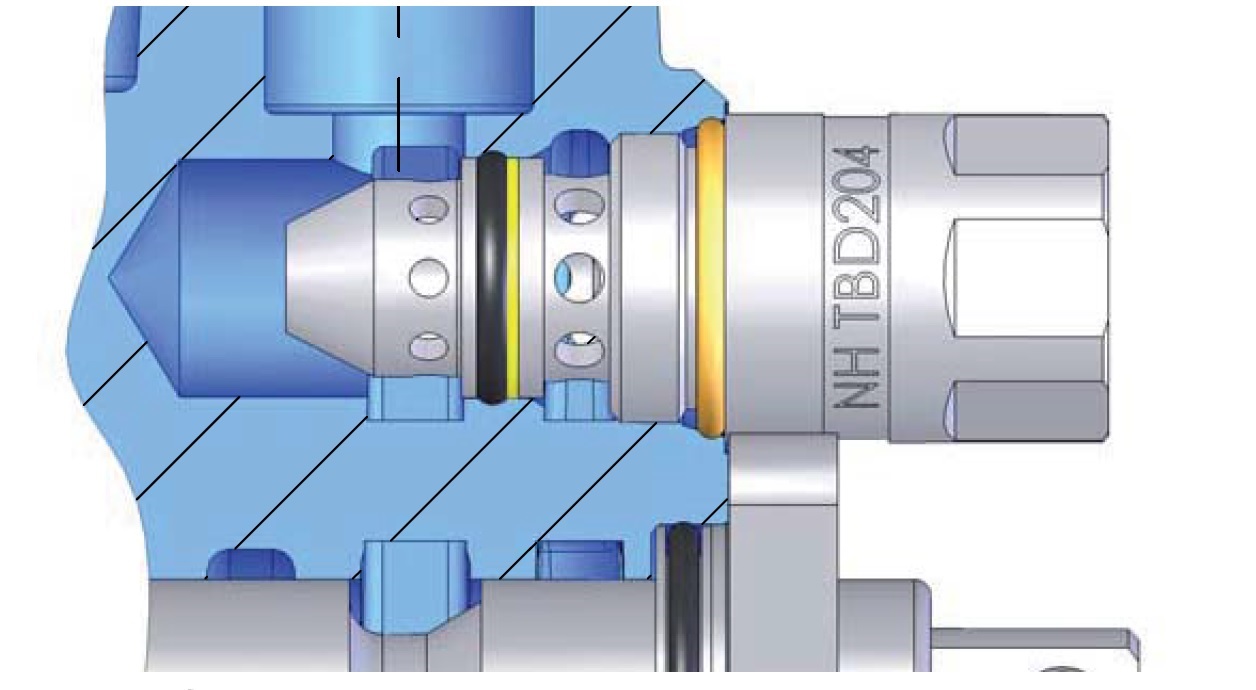

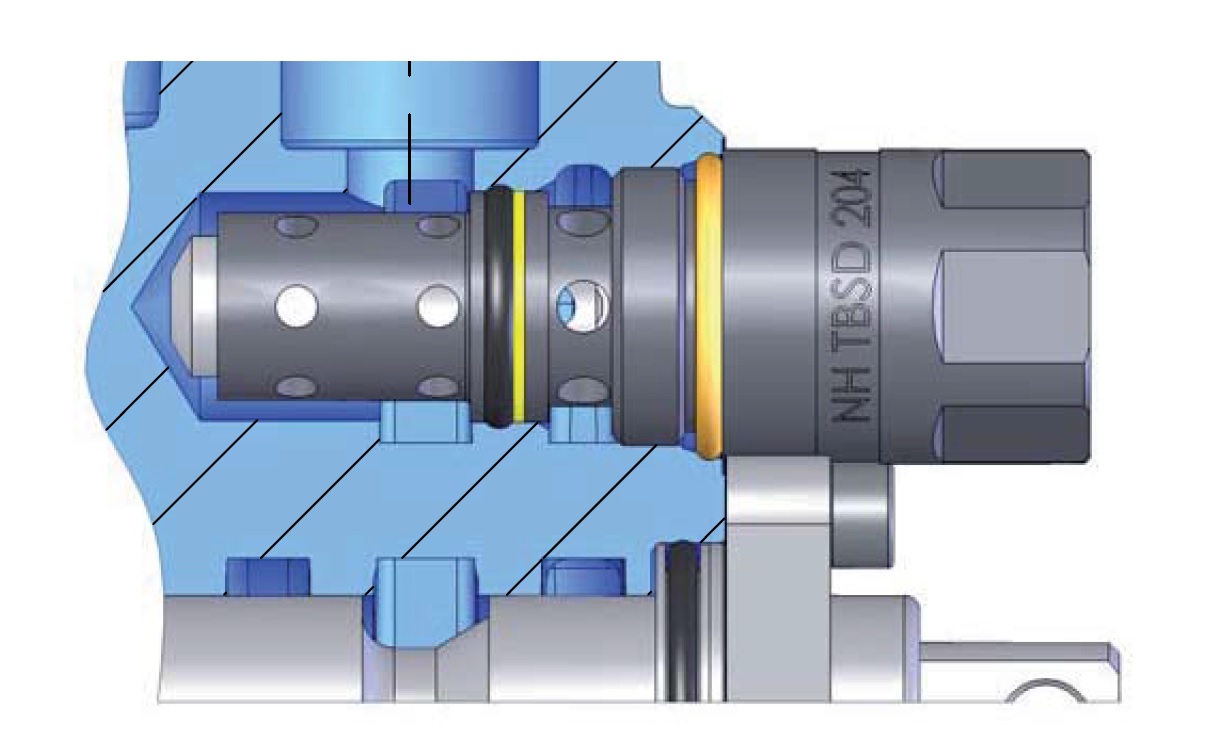

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 150 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 310 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 210 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 100 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 210 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 100 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 230 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 120 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 250 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 120 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 80 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 140 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 250 bar

The port relief valve is a differential area, direct acting relief valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 180 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 180 bar

The port relief valve is a differential area, direct acting relief and anticavitation valve for the secondary circuit. It can be used to secure the second circuit or for pressure peaks. It is adjusted to 200 bar

A selection valve to distribute the oil flow between two different functions (such as cylinders) or between two different control valves. The spindle is manually controlled model with spring centering

A selection valve to distribute the oil flow between two different functions (such as cylinders) or between two different control valves. The spindle is a pneumatically controlled model.

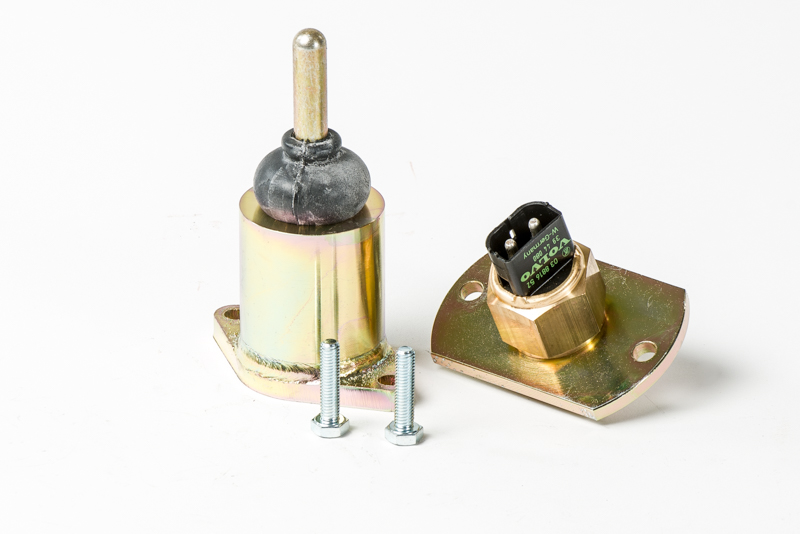

An electric tipping angle limiter kit. Usable when extra pneumatics are not wanted in the system.

Bypass valve for ABER BI 60 M7 piston pump 360510016. Max continuous operating pressure 350bar and periodic max pressure 400bar.

Bypass valve for ABER BI 80 P7 piston pump 360510017. Max continuous operating pressure 350bar and periodic max pressure 400bar.

Bypass valve for ABER BI 110 P7 piston pump 360510018. Max continuous operating pressure 350bar and periotic max pressure 400bar.

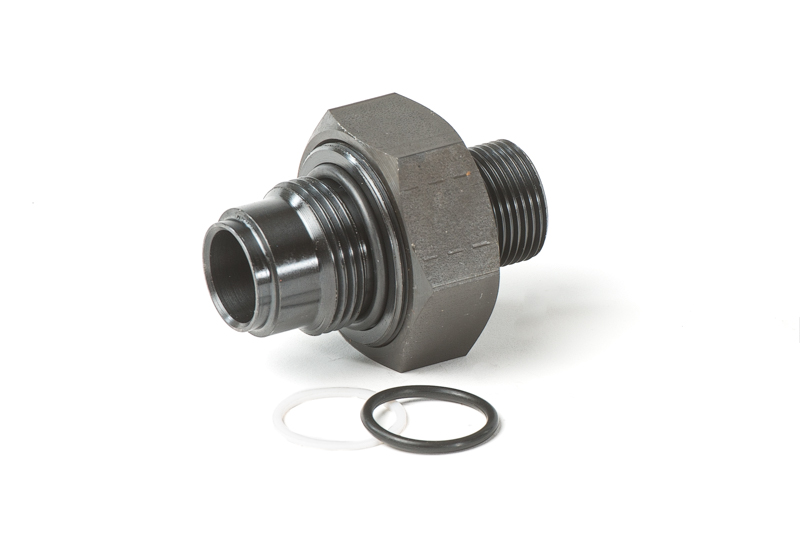

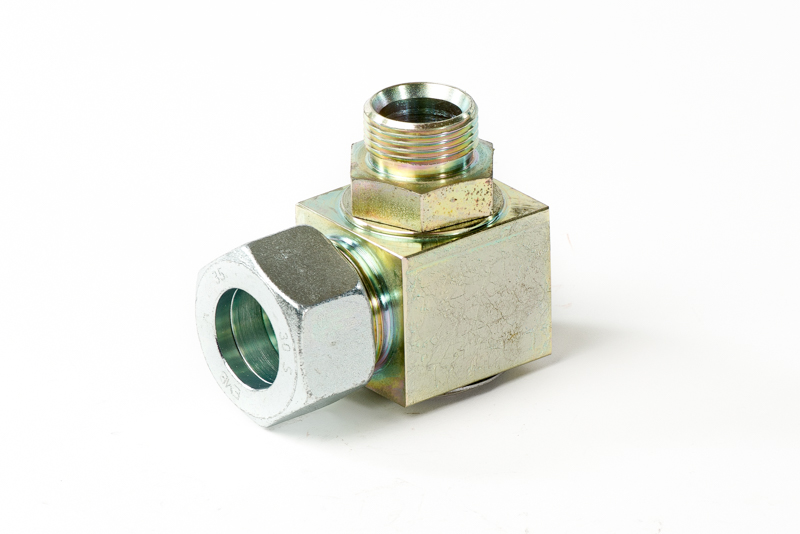

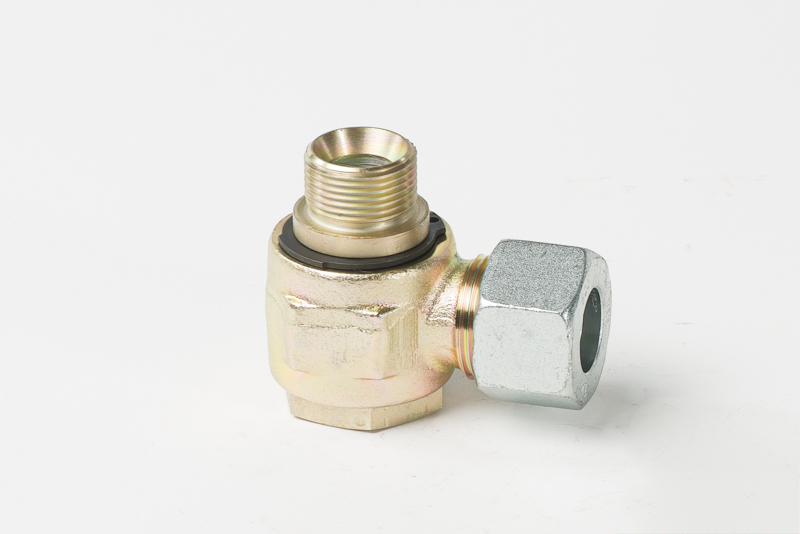

Rotating adapter for cylinders with ¾” thread. This adapter makes possible a free movement of the hose so no distress to the hydraulic lines is caused.

Rotating adapter for cylinders with 1” thread. This adapter makes possible a free movement of the hose so no distress to the hydraulic lines is caused.

Series nipple S RM270 for connecting two valves to each other with a hose.

Series nipple SK RM270 for connecting two valves directly to each other.

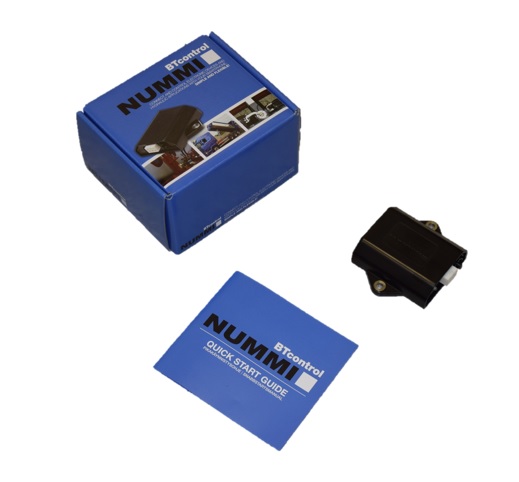

Smartphone remote control for tipping device. Free app can be dowloaded to smartphone. 4 outputs, range 30m. Icludes: receiver, cabel set and Quick start quide.

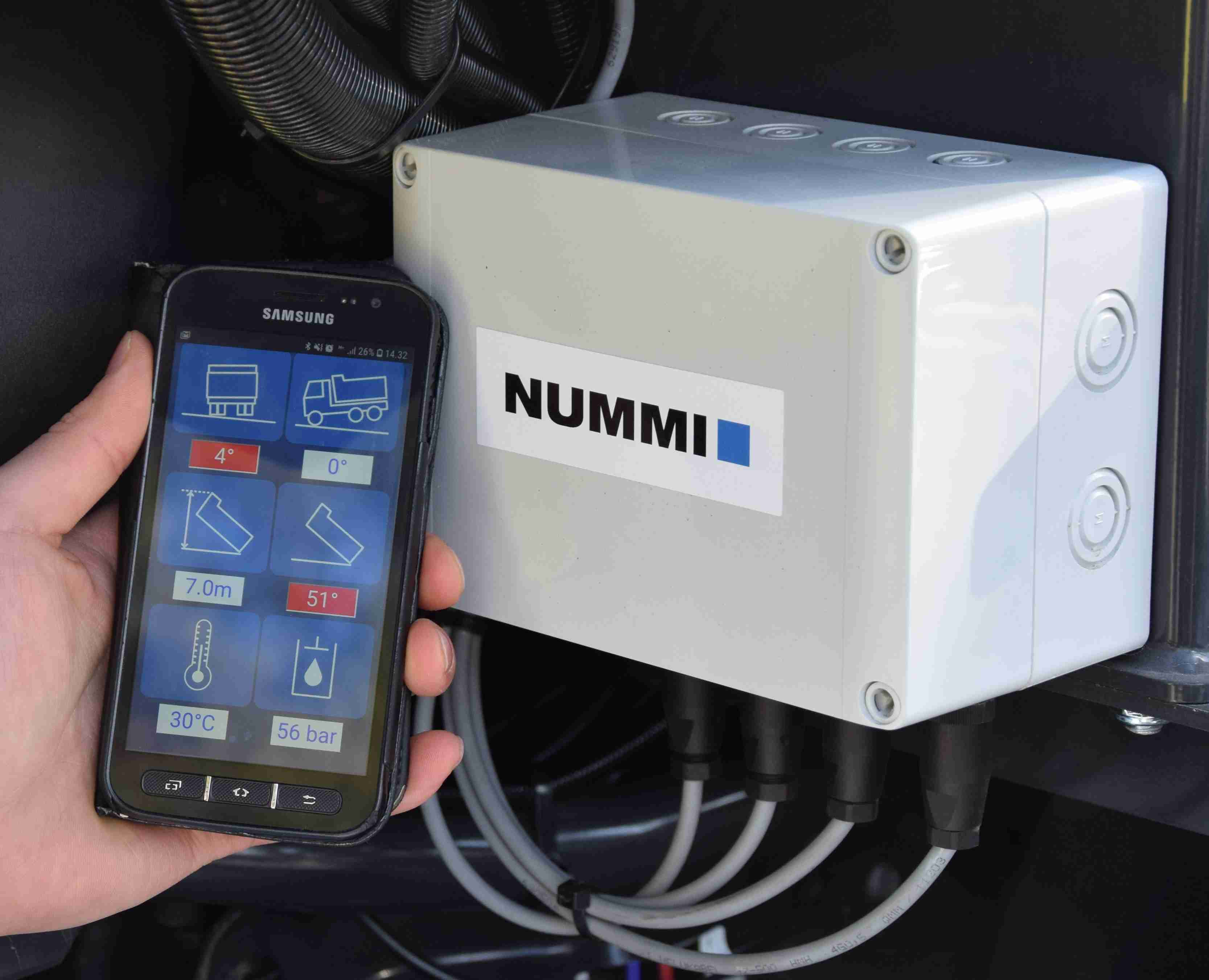

IRMA is a remote monitoring application for tippers an

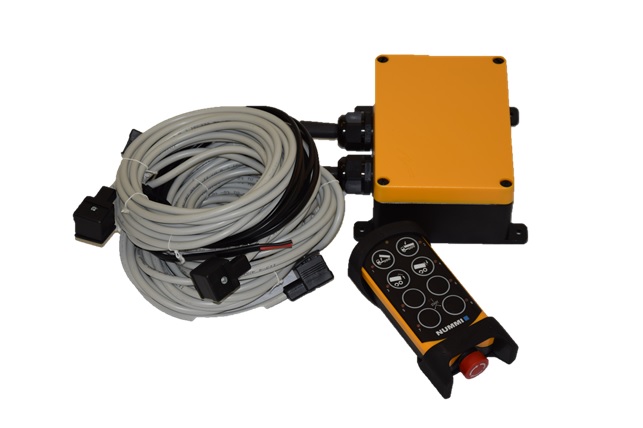

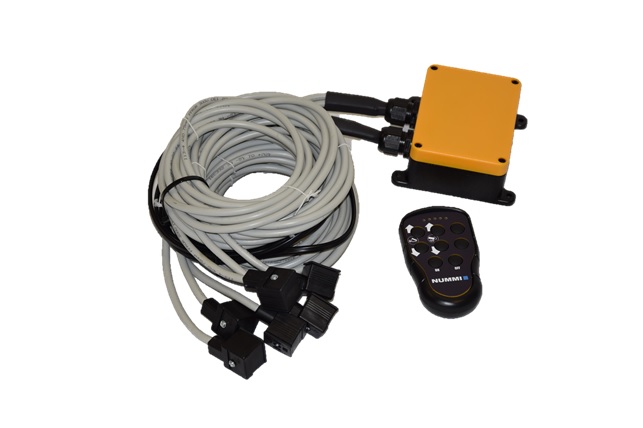

Radio control with exchangeable batteries. Includes transmitter and receiver. 6 buttons where two is reserved for tipping cylinder and 2 for tail gate. Rest of buttons are free.

Radio control with re-chargeably batteries. Includes charger, holder, transmitter and receiver. 8 buttons where two is reserved for tipping cylinder and 2 for tail gate. Rest of buttons are free.
